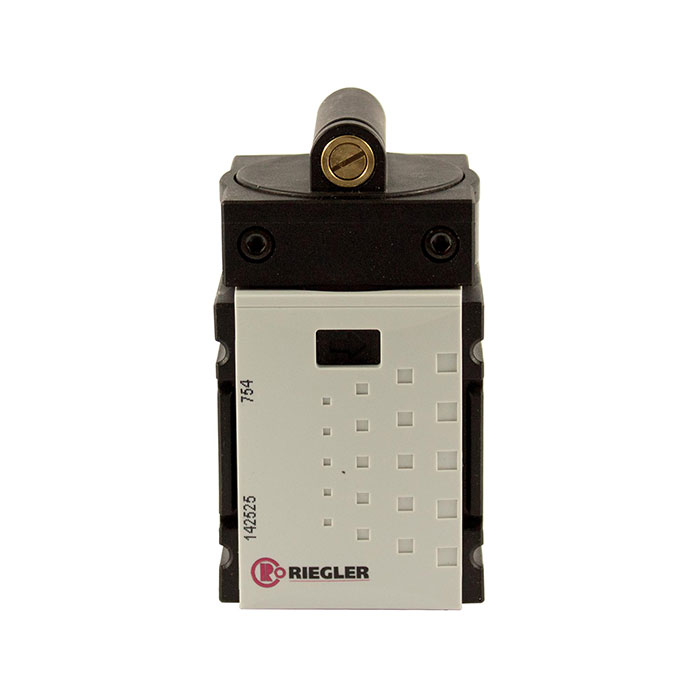

RIEGLER Filling valve (start-up valve) »FUTURA-mini«, Size 0, G 1/4
Type number: FUM 931
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filling valve (start-up valve) »FUTURA-mini«, Size 0, G 1/4, Input pressure 2.5 - 12 bar, Temperature -10 °C to 50 °C
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 2000 l/min |
| BG | 0 |
| A | 43 mm |
| B | 81 mm |
| C | 53 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=70292aa)
|
Type number: WKM 100 |
3.42 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=ae9a0b8)
|
Type number: KPM 100 |
2.07 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=2480c31)
|
Type number: H 848 |
6.28 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=f8ba2ac)
|
Typennummer: WK 100-14 |
29.45 € | |
