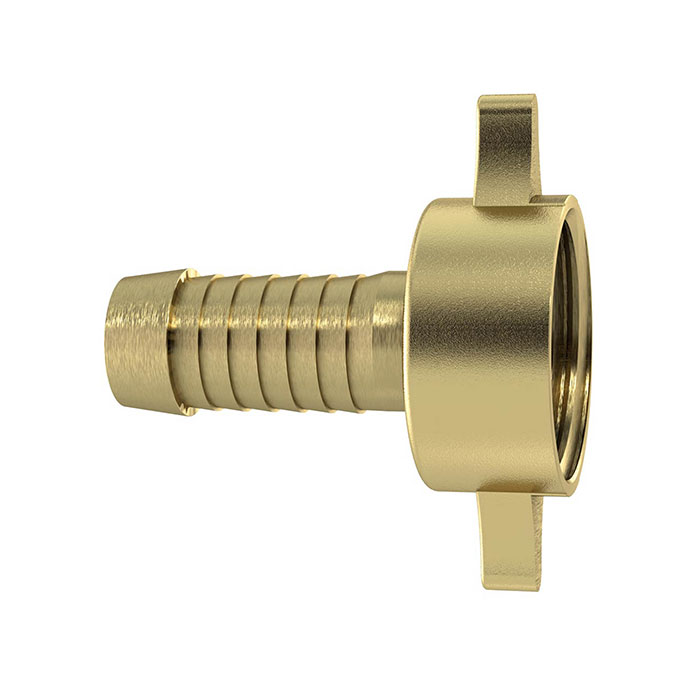

RIEGLER 2/3 Tube fitting G11/4x25 swivel nut taper seat heavy-duty, Brass
Typennummer: SV11425MS23F
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/3 Tube fitting, G 1 1/4 x 25 mm, swivel nut, taper seat, heavy-duty type, Brass with a bare metal surface
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Thread | G 1 1/4 |
| for hose | 25 mm |
| D | 63.4 mm |
| Execution | Union groove |
| L1 | 58.5 mm |
| L2 | 42.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
