RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 25 bar
Typennummer: DRG.G112.0,5-25B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Large pressure regulator with 2 pressure gauges for inlet and outlet pressure, G 1 1/2, control range 0.5 - 25 bar
| B | 279 mm |
| Medium | Compressed air or other neutral gases |
| Control range max. | 25 bar |
| Flow rate | 50000 l/min |
| DN | 40 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.5 bar |
| A | 160 mm |
| Inlet pressure max. | 40 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Housing | Die-cast aluminum |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 8 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | FLEX |
| Thread | G 1 1/2 |
| Handwheel | Toggle screw |
| Sealing material | NBR |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146273] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 10 bar](/web/image/product.template/283955/image_128/%5B146273%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%201%201-2%2C%20control%20range%200.5%20-%2010%20bar?unique=d121fc1)
|
Typennummer: DRG.G112.0,5-10B |
759.35 € | |
![[146274] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 15 bar](/web/image/product.template/283956/image_128/%5B146274%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%201%201-2%2C%20control%20range%200.5%20-%2015%20bar?unique=9c35e8a)
|
Typennummer: DRG.G112.0,5-15B |
759.35 € | |
![[146272] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 6 bar](/web/image/product.template/283954/image_128/%5B146272%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%201%201-2%2C%20control%20range%200.5%20-%206%20bar?unique=aa28eb5)
|
[146272] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 6 bar
Typennummer: DRG.G112.0,5-6B |
759.35 € | |
![[146277] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 10 bar](/web/image/product.template/283959/image_128/%5B146277%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%2010%20bar?unique=d41cf27)
|
Typennummer: DRG.G2.0,5-10B |
759.35 € | |
![[146278] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 15 bar](/web/image/product.template/283960/image_128/%5B146278%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%2015%20bar?unique=6c3b274)
|
Typennummer: DRG.G2.0,5-15B |
759.35 € | |

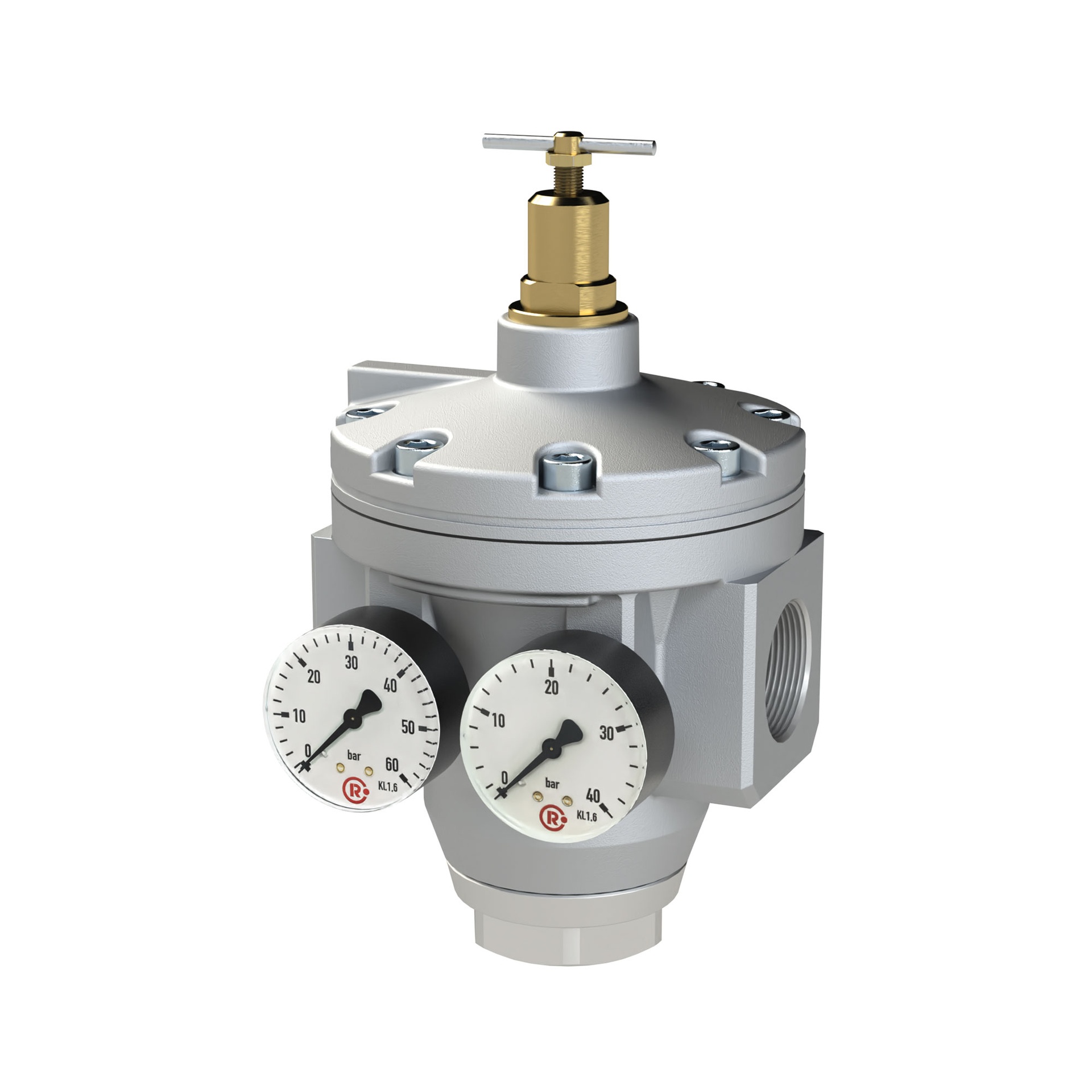

![[146279] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 25 bar](/web/image/product.template/283961/image_128/%5B146279%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%2025%20bar?unique=3025935)
|
Typennummer: DRG.G2.0,5-25B |
813.82 € | |
![[146276] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 6 bar](/web/image/product.template/283958/image_128/%5B146276%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%206%20bar?unique=1def738)
|
Typennummer: DRG.G2.0,5-6B |
759.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101842] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 40 bar, Ø 63](/web/image/product.template/169814/image_128/%5B101842%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2040%20bar%2C%20%C3%98%2063?unique=6a95775)
|
Type number: 220 |
7.07 € | |
![[101843] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 60 bar, Ø 63](/web/image/product.template/169815/image_128/%5B101843%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2060%20bar%2C%20%C3%98%2063?unique=c7f35e1)
|
Type number: 221 |
8.33 € | |
![[146280] RIEGLER wear parts kit large pressure r. G1 1/2, G2, max. control pressure 25 bar](/web/image/product.template/283962/image_128/%5B146280%5D%20RIEGLER%20wear%20parts%20kit%20large%20pressure%20r.%20G1%201-2%2C%20G2%2C%20max.%20control%20pressure%2025%20bar?unique=b9eeb22)
|
Typennummer: VTSDRG.G112.G2.25B |
159.08 € | |
