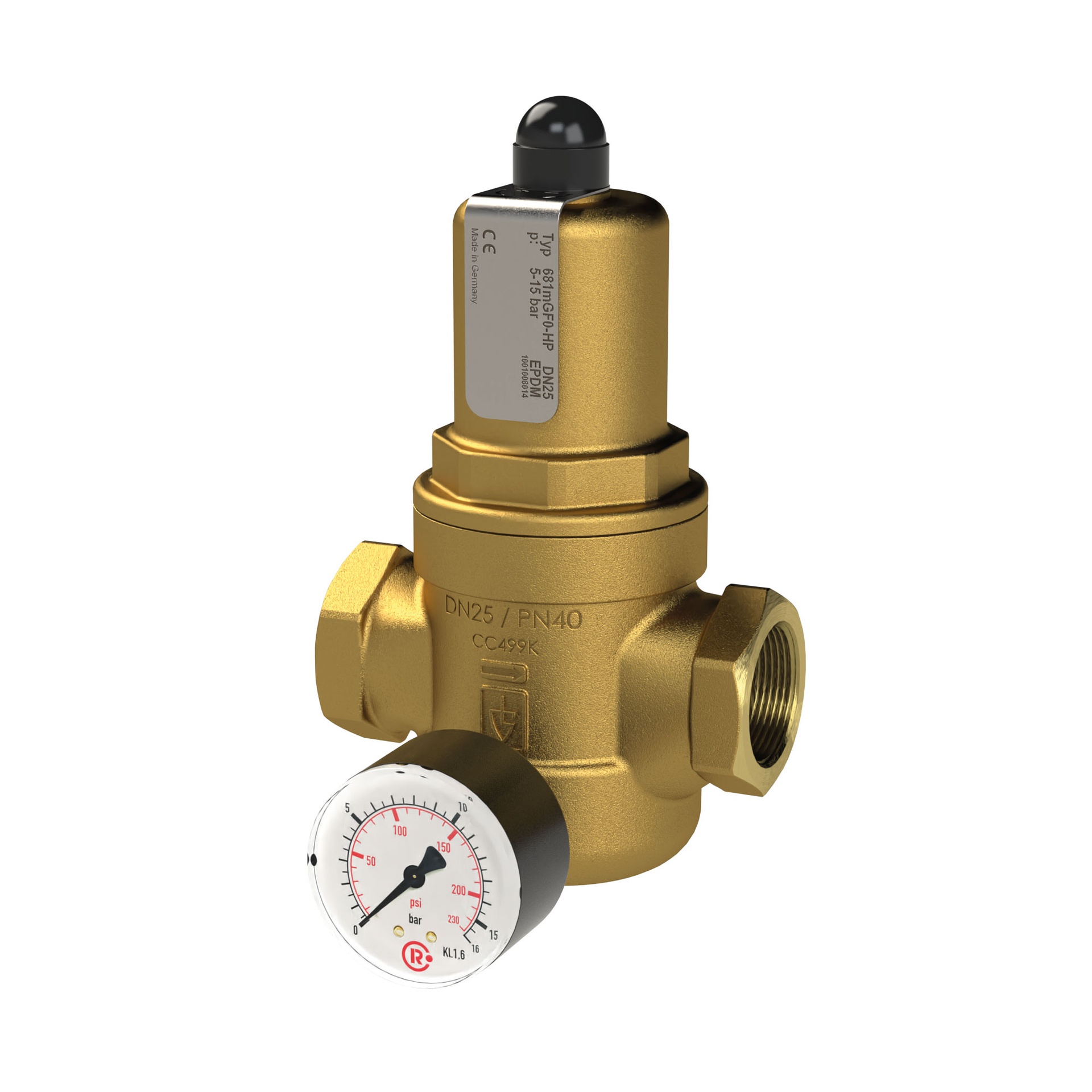

RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1/2 IG, 5 - 15 bar
Typennummer: DRTWR.G12.5-15B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for potable water, red brass, w. mano., G 1/2 IT, 5 - 15 bar, input press. max. 40 bar, temp. -20°C to 95°C
| Operating temperature max. drinking water | 80 °C |
| Control range min. | 5 bar |
| Interior parts | Gunmetal (CC499K) and stainless steel (1.4404) |
| Housing | Gunmetal (CC499K) |
| Medium | Drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases |
| SW | 28 mm |
| Control range max. | 15 bar |
| DN | 15 |
| Operating temperature min. | -20 °C |
| D | 102 mm |
| Flow rate kvs-value | 3 m³/h |
| C | 33 mm |
| Inlet pressure max. | 40 bar |
| A | 85 mm |
| Operating temperature max. | 95 °C |
| Sealing material | EPDM |
| Class name | FLEX |
| Thread | G 1/2 IG |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146316] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1/2 IG, 1 - 8 bar](/web/image/product.template/283967/image_128/%5B146316%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%201-2%20IG%2C%201%20-%208%20bar?unique=d79d14f)
|
Typennummer: DRTWR.G12.1-8B |
129.66 € | |
![[146320] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1 female thread, 1 - 8 bar](/web/image/product.template/283971/image_128/%5B146320%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%201%20female%20thread%2C%201%20-%208%20bar?unique=f431fa7)
|
Typennummer: DRTWR.G1.1-8B |
161.30 € | |
![[146321] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 1 female thread, 5 - 15 bar](/web/image/product.template/283972/image_128/%5B146321%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%201%20female%20thread%2C%205%20-%2015%20bar?unique=f128398)
|
Typennummer: DRTWR.G1.5-15B |
183.21 € | |
![[146318] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 3/4 IG, 1 - 8 bar](/web/image/product.template/283969/image_128/%5B146318%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%203-4%20IG%2C%201%20-%208%20bar?unique=3c1de2d)
|
Typennummer: DRTWR.G34.1-8B |
146.82 € | |
![[146319] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 3/4 IG, 5 - 15 bar](/web/image/product.template/283970/image_128/%5B146319%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20G%203-4%20IG%2C%205%20-%2015%20bar?unique=03cda84)
|
Typennummer: DRTWR.G34.5-15B |
165.40 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[134445] RIEGLER Reducing nipple, short, G 1/2 ET, G 1/4 IT, AF 24, Brass](/web/image/product.template/205414/image_128/%5B134445%5D%20RIEGLER%20Reducing%20nipple%2C%20short%2C%20G%201-2%20ET%2C%20G%201-4%20IT%2C%20AF%2024%2C%20Brass?unique=f12bb29)
|
Type number: MS251K1214 |
1.02 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[146312] RIEGLER valve insert for drinking water pressure regulator, G 1/2 and G 3/4](/web/image/product.template/283964/image_128/%5B146312%5D%20RIEGLER%20valve%20insert%20for%20drinking%20water%20pressure%20regulator%2C%20G%201-2%20and%20G%203-4?unique=ce9187d)
|
Typennummer: VEDRTWR.G12.G34 |
76.81 € | |
