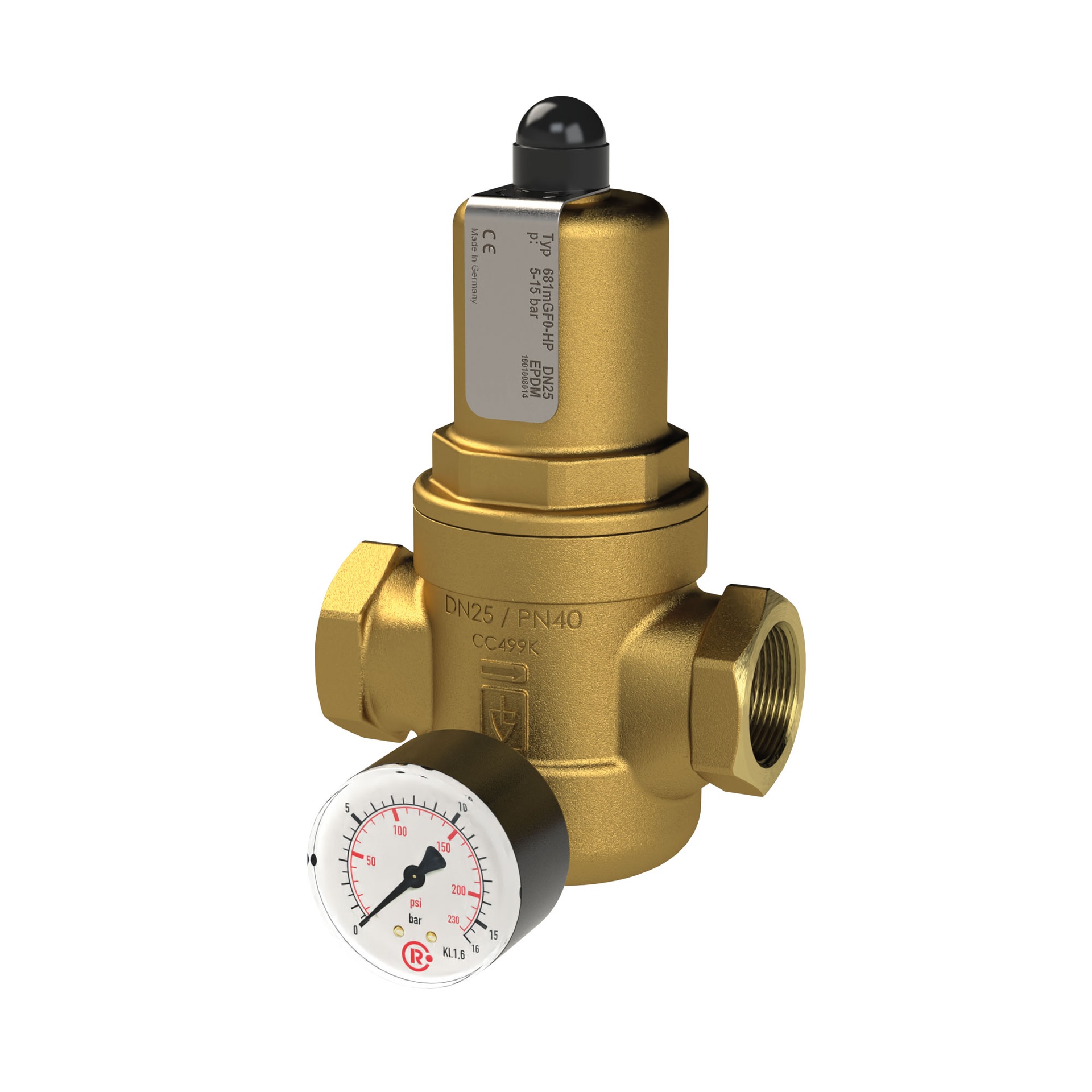

RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, G 3/4 IG, 5 - 15 bar
Type number: DRTWR.G34.5-15B
EAN: 4047322778152
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-interchangeable quick-release coupling NW 5, MS blank, G 1/8 female thread, green, max. 35 bar, medium/ambient temp. -20°C to 100°C
| Operating temperature max. drinking water | 80 °C |
| Control range min. | 5 bar |
| Interior parts | Gunmetal (CC499K) and stainless steel (1.4404) |
| Housing | Gunmetal (CC499K) |
| Medium | Drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases |
| SW | 35 mm |
| Control range max. | 15 bar |
| DN | 20 |
| Operating temperature min. | -20 °C |
| D | 102 mm |
| Flow rate kvs-value | 3.5 m³/h |
| C | 33 mm |
| Inlet pressure max. | 40 bar |
| Operating temperature max. | 95 °C |
| A | 95 mm |
| Sealing material | EPDM |
| Class name | FLEX |
| Thread | G 3/4 IG |
