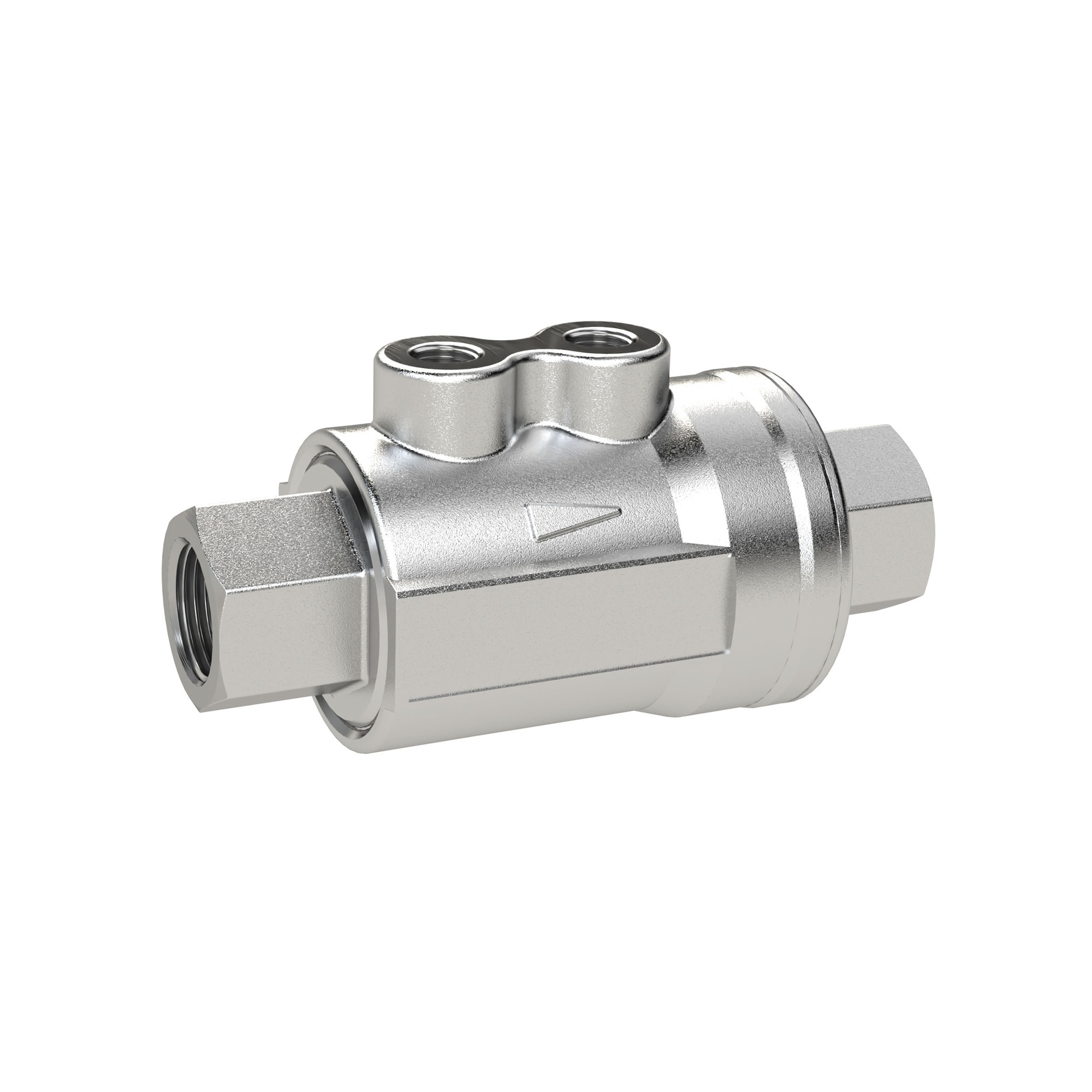

RIEGLER Coaxial valve, pneumatic double-acting MS nickel-plated FKM, Rp 2
Type number: 351.927-1
EAN: 4047322781138
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Coaxial valve, pneumatic double-acting MS nickel-plated. FKM, operating temp. -20 °C to 150 °C, control pressure 3 - 8 bar, Rp 2, DN 50
| Connection | 2 x G 1/8 (NAMUR interface only with adapter) |
| Execution | double-acting |
| Type of construction | Piston valve (special piston shape for 100 % flow) |
| Actuation | air-operated on both sides |
| Max. operating pressure | 10 bar |
| Operating temperature max. | 150 °C |
| Operating temperature min. | -20 °C |
| Sealing material | FKM |
| DN | 50 |
| Flow direction | any |
| Installation position | any |
| Spring | Stainless steel |
| Housing | Nickel-plated brass |
| Weight | 5.1 kg |
| Thread | Rp 2 |
| H | 109 mm |
| Interior parts | Nickel-plated brass |
| Class name | EASY |
| L | 205 mm |
| Control pressure max. | 8 bar |
| Control pressure min. | 3 bar |
