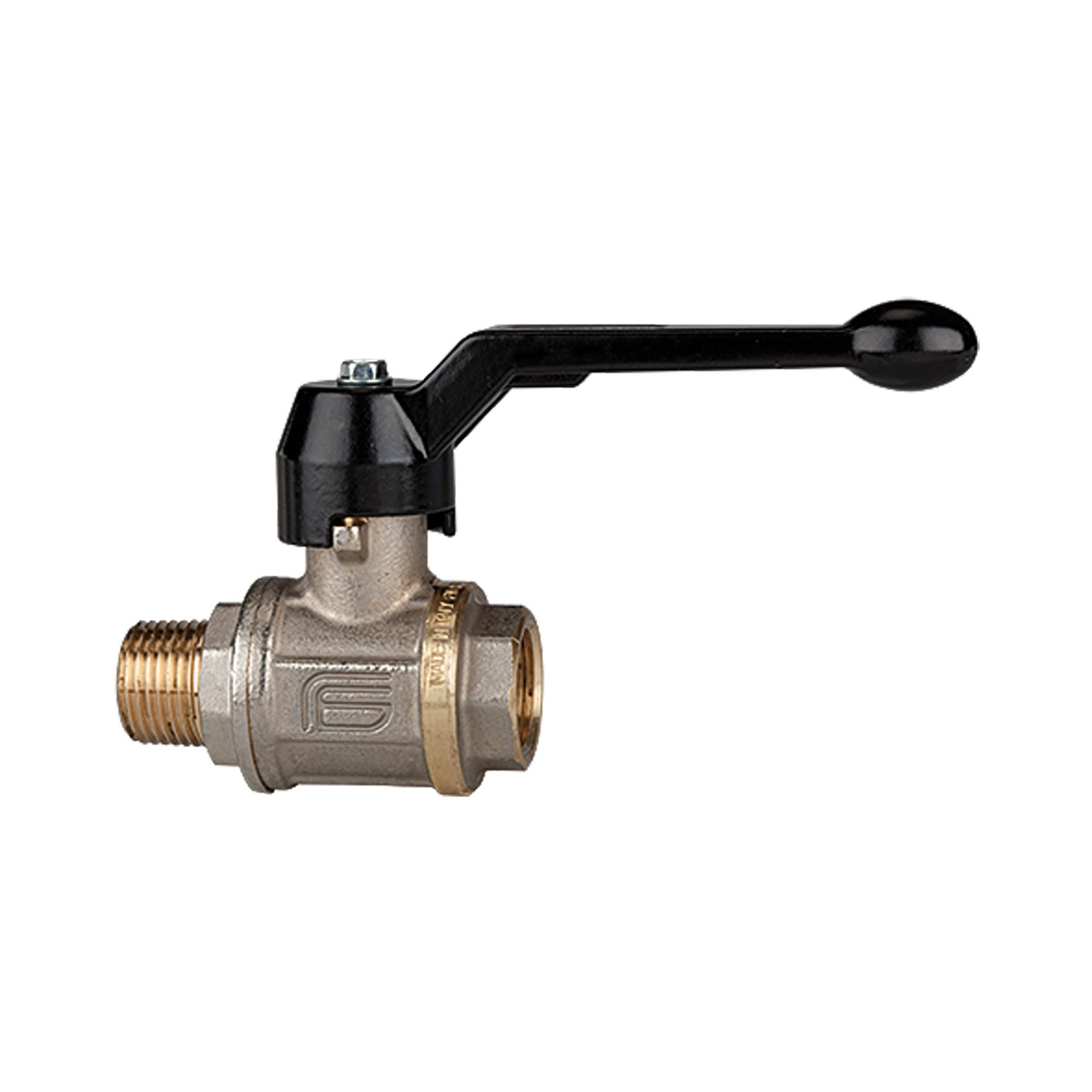

RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 1 1/2
Typennummer: 3350.88-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve heavy duty design, manuel lever, IT/ET, nickel-plated brass, operating temp. -20 °C to 130 °C, G 1 1/2, PN max. 80 bar
| F | 17.5 mm |
| Thread standard | DIN EN ISO 228-1 |
| DN | 40 |
| Operating temperature min. | -20 °C |
| B | 104 mm |
| L | 115 mm |
| Operating temperature max. | 130 °C |
| A | 150 mm |
| E | 17.5 mm |
| SW 2 | 56 mm |
| SW 1 | 56 mm |
| PN | 80 bar |
| Hand lever | Aluminum, painted black |
| Thread | G 1 1/2 |
| Class name | MAX |
| Thread material | Brass bright |
| Ball | Chrome-plated brass |
| Housing | Nickel-plated brass |
| Spindle seal | PTFE |
| Ball seal | PTFE |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147609] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 2](/web/image/product.template/284397/image_128/%5B147609%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%202?unique=da9a8de)
|
Typennummer: 3350.99-1 |
101.33 € | |
![[147603] RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 3/8](/web/image/product.template/284395/image_128/%5B147603%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20hand%20lever%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%203-8?unique=a57d183)
|
Typennummer: 3350.33-1 |
10.53 € | |
![[103275] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 1](/web/image/product.template/171242/image_128/%5B103275%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%201?unique=7a9df05)
|
Type number: 3350.66 |
31.02 € | |
![[103277] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 1 1/2](/web/image/product.template/171244/image_128/%5B103277%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%201%201-2?unique=50f4338)
|
Type number: 3350.88 |
57.35 € | |
![[103276] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 1 1/4](/web/image/product.template/171243/image_128/%5B103276%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%201%201-4?unique=af31f8e)
|
Type number: 3350.77 |
47.05 € | |
![[103273] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 1/2](/web/image/product.template/171240/image_128/%5B103273%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%201-2?unique=cdbb7c2)
|
Type number: 3350.44 |
0.96 € | |
![[103271] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 1/4](/web/image/product.template/171238/image_128/%5B103271%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%201-4?unique=be34b87)
|
Type number: 3350.22 |
8.79 € | |
![[103278] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 2](/web/image/product.template/171245/image_128/%5B103278%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%202?unique=d0bc141)
|
Type number: 3350.99 |
101.33 € | |
![[103274] RIEGLER Ball valve heavy duty design, Manual lever, IT/ET, G/R 3/4](/web/image/product.template/171241/image_128/%5B103274%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Manual%20lever%2C%20IT-ET%2C%20G-R%203-4?unique=2e56297)
|
Type number: 3350.55 |
19.73 € | |
