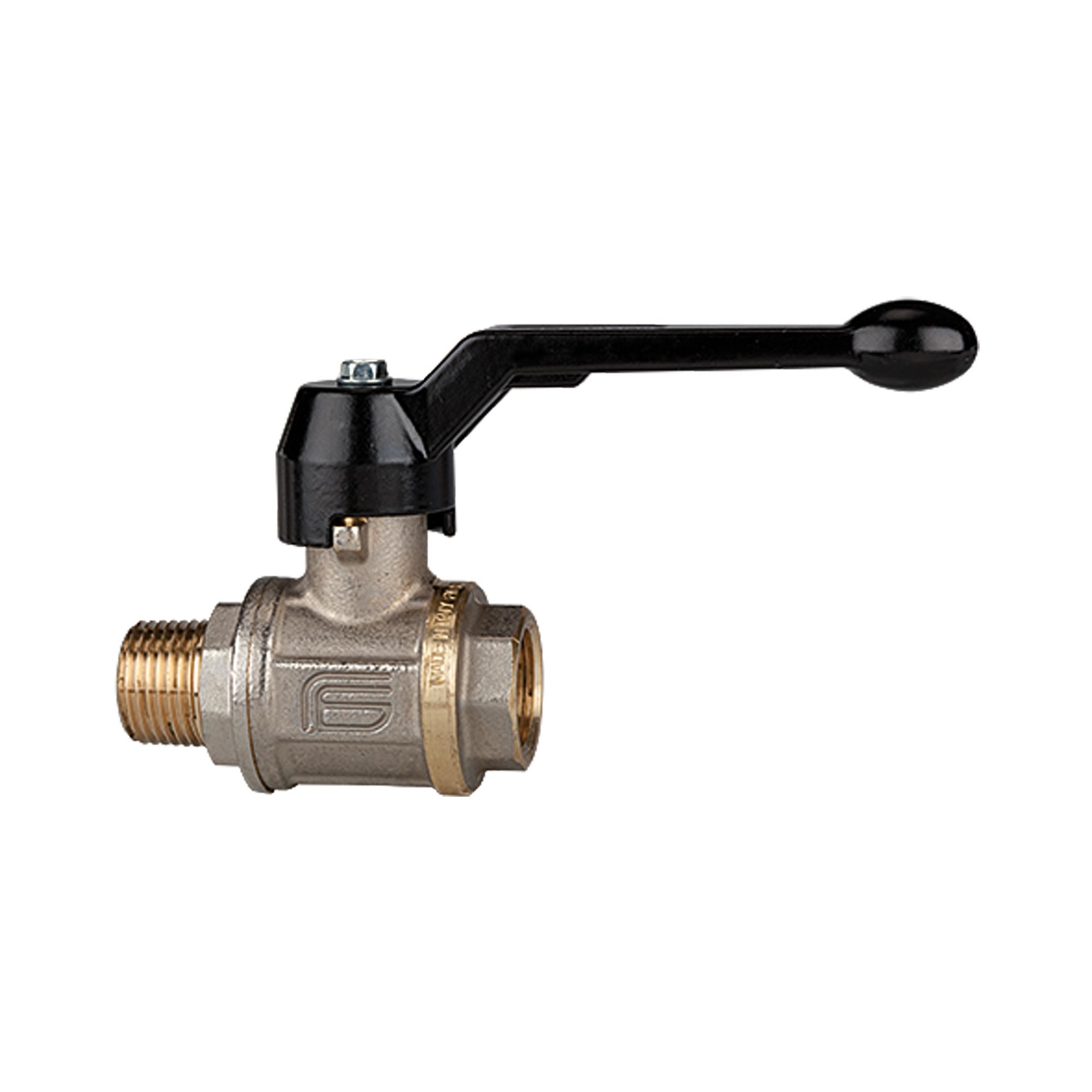

RIEGLER ball valve, heavy-duty design, hand lever, IG/AG, MS nickel-plated, G 2
Type number: 3350.99-1
EAN: 4047322793230
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/3-way valve, electropneumatic, ext. control air, center closed, G 1/4, 12 V DC, p= vacuum?10 bar, control pressure 2.5?10 bar, aluminum
| F | 19.5 mm |
| SW 2 | 69 mm |
| Thread standard | DIN EN ISO 228-1 |
| DN | 50 |
| Operating temperature min. | -20 °C |
| B | 116 mm |
| Operating temperature max. | 130 °C |
| L | 134 mm |
| A | 175 mm |
| E | 19.5 mm |
| PN | 63 bar |
| SW 1 | 69 mm |
| Hand lever | Aluminum, painted black |
| Thread | G 2 |
| Class name | MAX |
| Thread material | Brass bright |
| Ball | Chrome-plated brass |
| Housing | Nickel-plated brass |
| Spindle seal | PTFE |
| Ball seal | PTFE |
