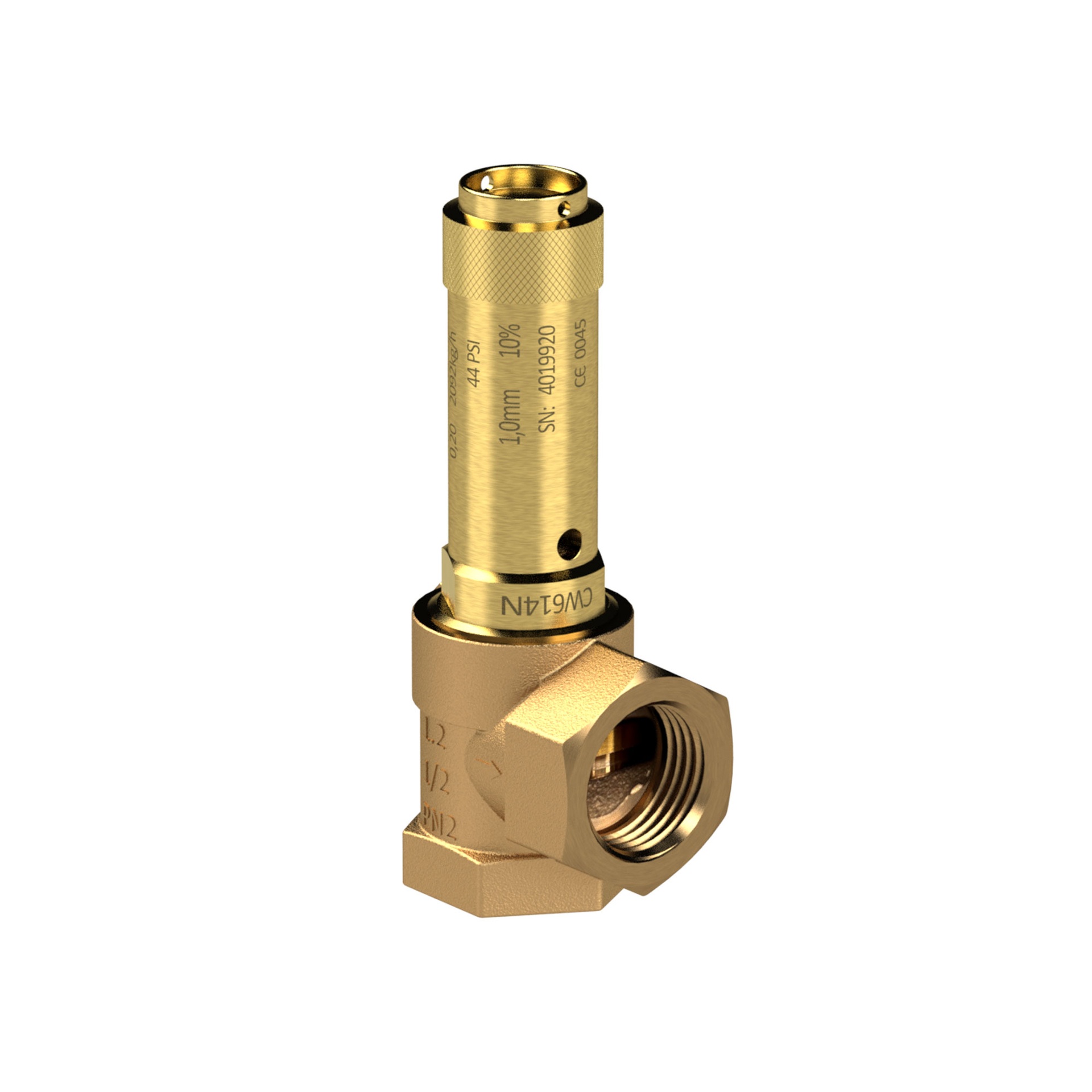

RIEGLER angle safety valve fluids, G 11/4 Set pressure 14.5 bar
Typennummer: 221.06-14,5
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
148090EAN :
4047322798327Category :
Safety valves & pressure relief valvesWeight :
0.01 kgCorner safety valve, for liquids, Red brass, FPM, Operating temp. -10 °C to 110 °C, G 1 1/4, AF 50, Trigger pressure 14.5 bar
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| SW | 50 mm |
| Operating temperature min. | -10 °C |
| Setting range | 1 - 16 bar (depending on the seal used) |
| Setting range min. | 1 bar |
| Operating temperature max. | 110 °C |
| Response pressure min. | 14.5 bar |
| H | 152 mm |
| Setting range max. | 16 bar |
| L2 | 35 mm |
| L1 | 40 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Spring | Carbon steel |
| Class name | FLEX |
| Membrane | FPM |
| Thread | G 1 1/4 |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Interior parts | Brass |
| Spring cover | Brass |
| Housing | Gunmetal |
| Theme shop | SAFETY |
