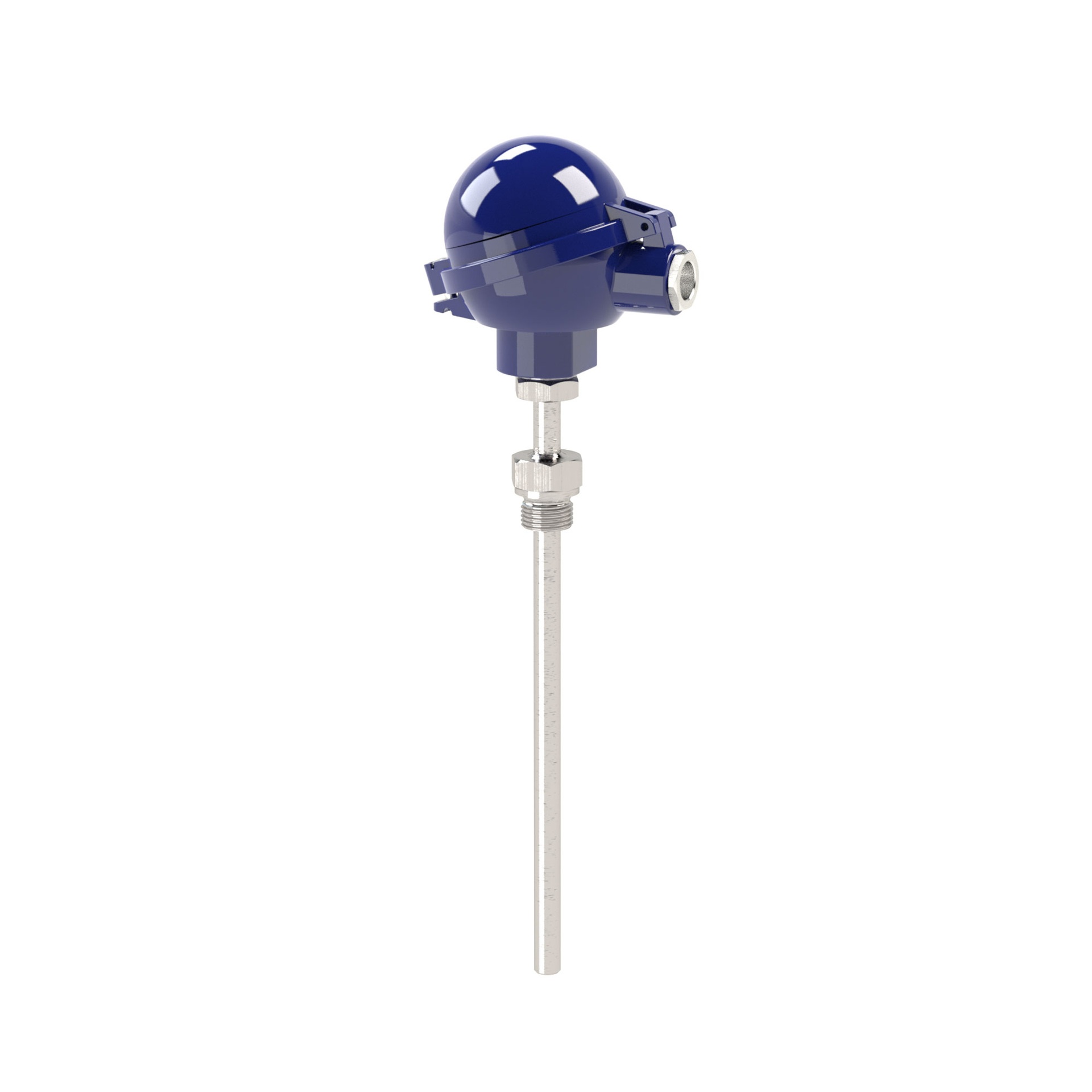

RIEGLER resistance thermometer, TR10-C, 1xPt100, 4-wire, 400 mm
Typennummer: TR10-C.100.4.A.12.K.400
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Resistance thermometer, TR10-C, 1xPt100, 4-wire, class A, G 1/2, -30 to 300 °C, with terminal block, insertion length: 400 mm
| Display range max. | 300 °C |
| WIKA Typ | TR10-C |
| Thermowell material | Stainless steel 1.4571 |
| Transmitter | without |
| Measuring insert Ø | 6 mm |
| Cable input | Standard cable gland M20x1.5 |
| Installation length | 400 mm |
| Connection housing | BSZ, spherical shape, hinged lid |
| Connection to the neck tube | M24x1,5 mm |
| Accuracy | Class A |
| Output signal | Pt100, 4-wire |
| Display range min. | -30 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Housing | Aluminum |
| Class name | FLEX |
| Thread | G 1/2 AG |
| Protection class | IP 65 |
