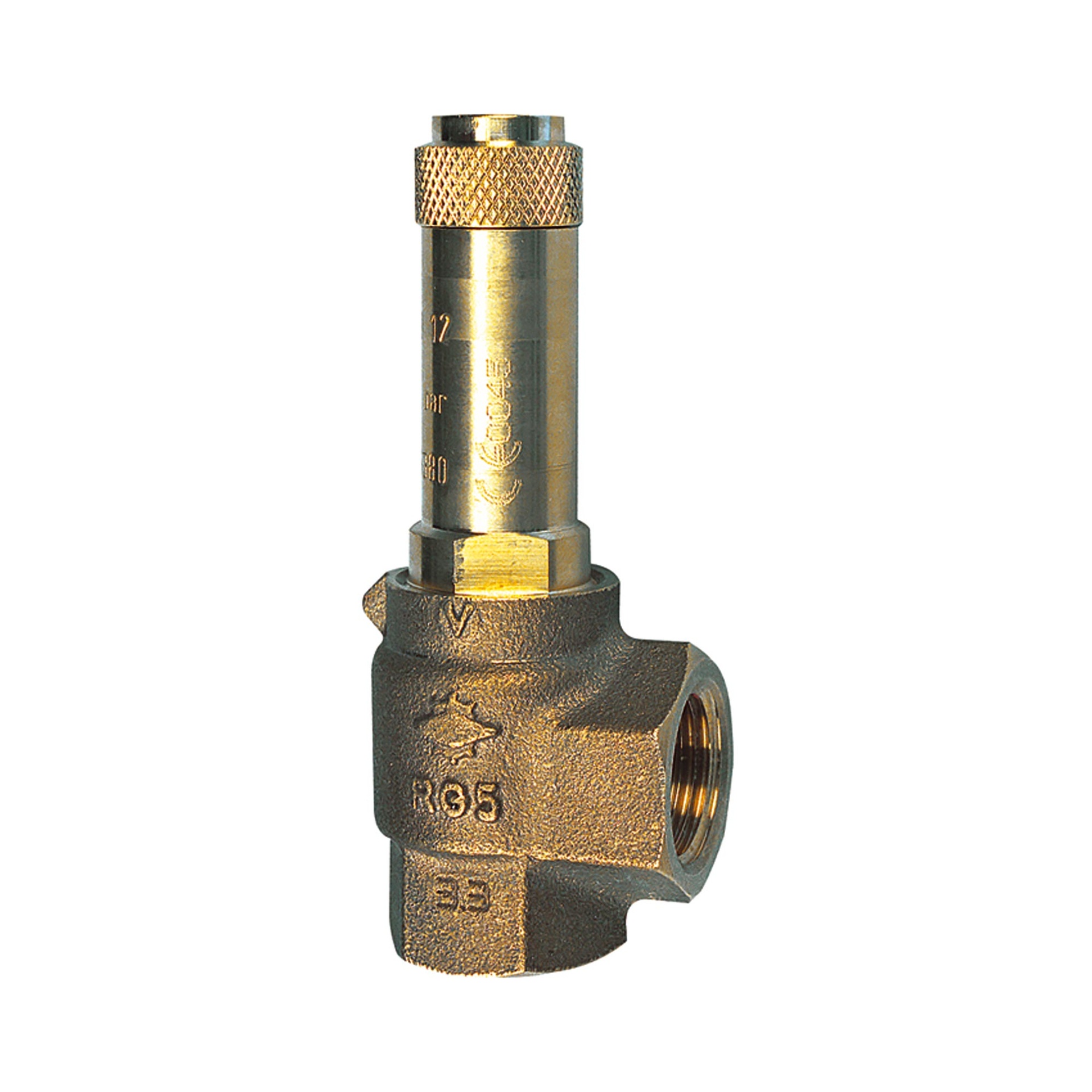

RIEGLER angle safety valve, saturated steam, G 1/2, set pressure 1.2 bar
Typennummer: 222.03-1,2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
148657EAN :
4047322803960Category :
Safety valves & pressure relief valvesWeight :
0.27 kgCorner safety valve, for saturated steam, Red brass, Operating temp. -10 to 150 °C, G 1/2, AF 27, Trigger pressure 1.2 bar
| Operating temperature | -10 °C bis 150 °C (EPDM) 225 °C (PTFE) |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| SW | 27 mm |
| Operating temperature min. | -10 °C |
| Setting range | 0.2 - 20 bar (depending on connection size and medium) |
| Setting range min. | 0.2 bar |
| Response pressure min. | 1.2 bar |
| Operating temperature max. | 150 °C |
| Setting range max. | 20 bar |
| L2 | 22 mm |
| L1 | 25 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| H | 99 mm |
| Spring | Carbon steel |
| Membrane | EPDM |
| Class name | FLEX |
| Thread | G 1/2 |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Interior parts | Brass |
| Spring cover | Brass |
| Housing | Gunmetal |
| Theme shop | SAFETY |
