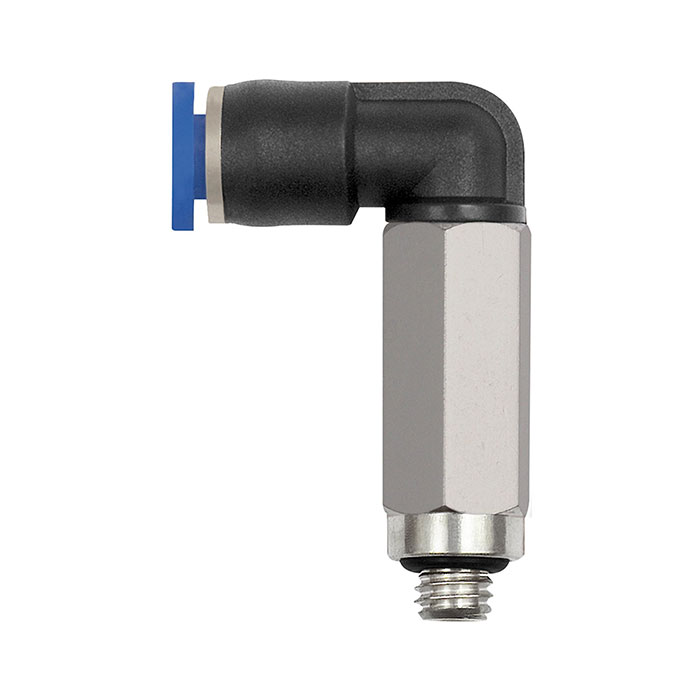

RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, G 1/8
Typennummer: 127.018-4M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Push-in L-fitting »Blue Series« mini, Long, rotating, G 1/8, for hose exterior Ø 4 mm, pmax 10 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/8 |
| SW | 10 mm |
| Thread standard | DIN EN ISO 228-1, NBR O-ring |
| for hose outer Ø | 4 mm |
| L1 | 15.9 mm |
| L2 | 29.4 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[148836] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, G 1/8](/web/image/product.template/210544/image_128/%5B148836%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20G%201-8?unique=2839ada)
|
Typennummer: 127.018-6M |
2.25 € | |

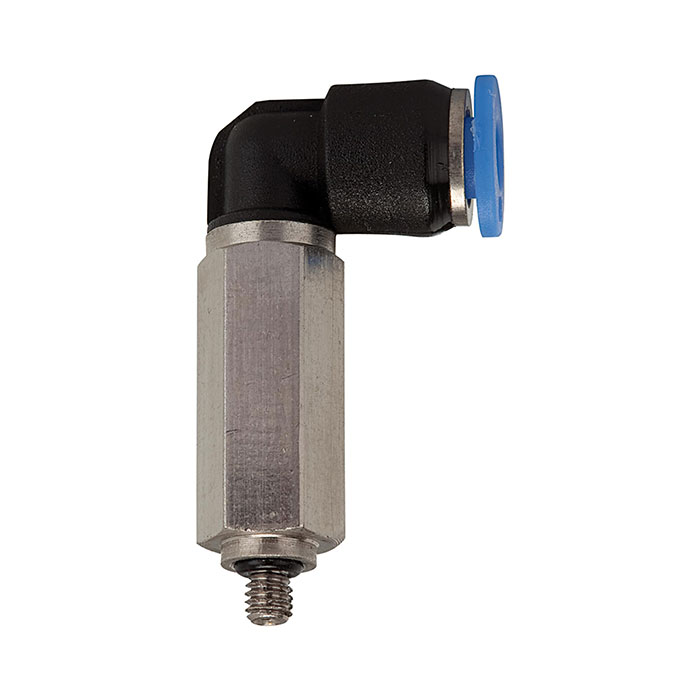

![[148828] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M3](/web/image/product.template/210536/image_128/%5B148828%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M3?unique=2506ccc)
|
Typennummer: 127.003-4M |
2.05 € | |
![[148827] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M3](/web/image/product.template/210535/image_128/%5B148827%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M3?unique=a955281)
|
Typennummer: 127.003-3M |
2.05 € | |
![[148829] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M5](/web/image/product.template/210537/image_128/%5B148829%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M5?unique=28e62a2)
|
Typennummer: 127.005-3M |
2.05 € | |
![[148830] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M5](/web/image/product.template/210538/image_128/%5B148830%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M5?unique=6ce1e09)
|
Typennummer: 127.005-4M |
2.05 € | |
![[148831] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M5](/web/image/product.template/210539/image_128/%5B148831%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M5?unique=c5fe7b8)
|
Typennummer: 127.005-6M |
2.05 € | |
![[148832] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M6](/web/image/product.template/210540/image_128/%5B148832%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M6?unique=8c12daa)
|
Typennummer: 127.006-3M |
2.05 € | |
![[148833] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M6](/web/image/product.template/210541/image_128/%5B148833%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M6?unique=4f2616f)
|
Typennummer: 127.006-4M |
2.05 € | |
![[148834] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, M6](/web/image/product.template/210542/image_128/%5B148834%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20M6?unique=dd6c659)
|
Typennummer: 127.006-6M |
2.05 € | |

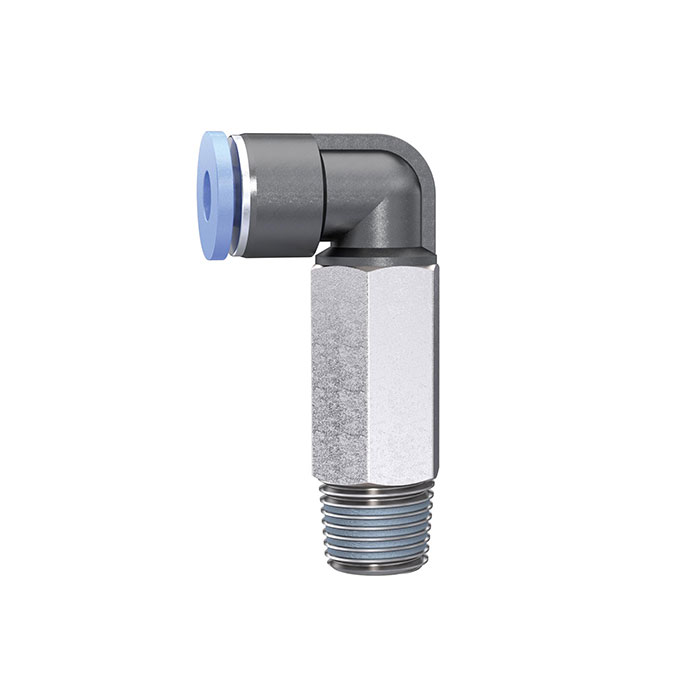

![[148837] RIEGLER Push-in L-fitting »Blue Series« mini, Long, rotating, R 1/8](/web/image/product.template/210545/image_128/%5B148837%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20Long%2C%20rotating%2C%20R%201-8?unique=e7bfb88)
|
