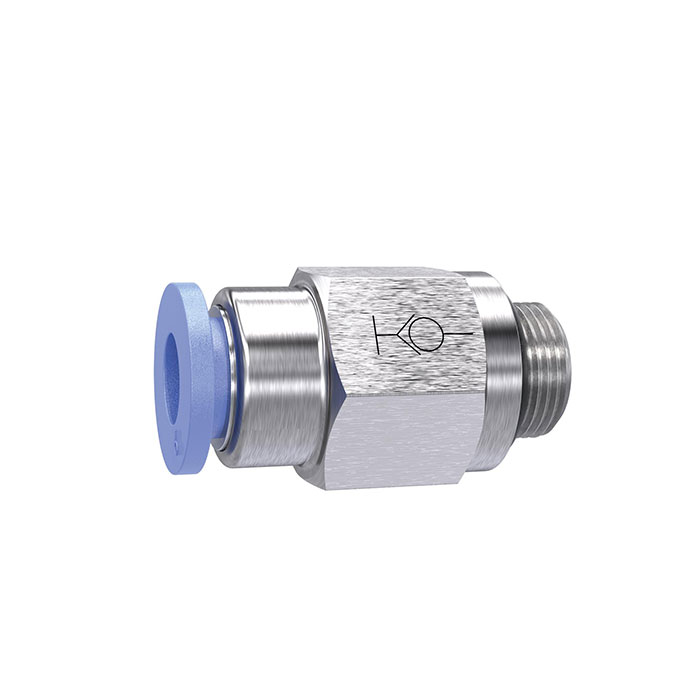

RIEGLER Straight push-in fitting »Blue Series«, Self-locking, G 1/8 o.
Typennummer: 195.186-2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight push-in fitting »Blue Series«, Self-locking, G 1/8 o., for hose exterior Ø 6 mm, pmax 10 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/8 |
| SW | 14 mm |
| Thread standard | DIN EN ISO 228-1 |
| Function | Self-locking |
| for hose outer Ø | 6 mm |
| Execution | With O-ring (NBR) |
| L1 | 27.5 mm |
| Class name | EASY |
