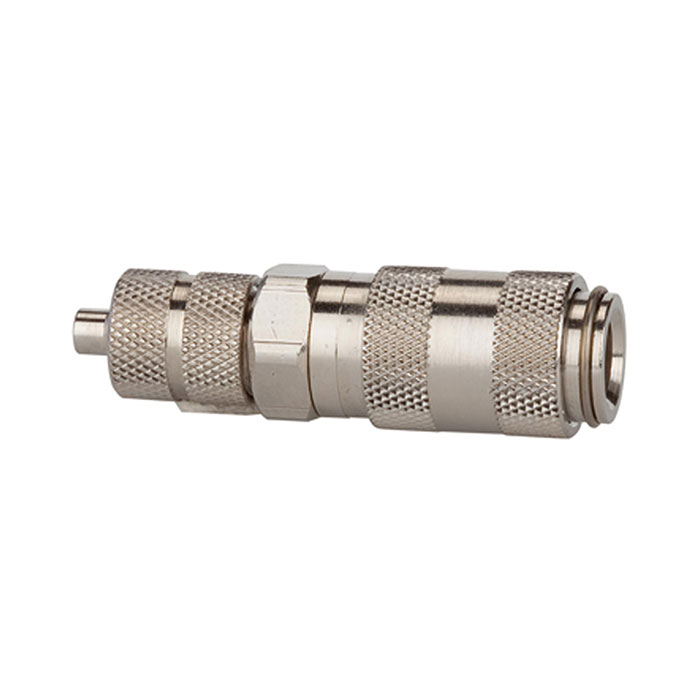

RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose 6x4
Typennummer: 243.08/9-ES-E
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose connection 6x4, Operating pressure 0 - 35 bar, Temp. -20°C to 200°C
| Housing | Stainless steel 1.4305 |
| Sealing material | FPM |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 120 l/min (air) |
| Ball | Stainless steel 1.4034 |
| Spring | Stainless steel 1.4310 |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | Stainless steel 1.4310 |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 9 mm |
| NW | 2.7 |
| Length | 33 mm |
| Connection | Trouser connection 6x4 |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156210] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose 4x3](/web/image/product.template/213275/image_128/%5B156210%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4305%2C%20Hose%204x3?unique=4ca0720)
|
Typennummer: 243.08/7-ES-E |
90.70 € | |
![[156211] RIEGLER Quick-connect coupling I.D. 2.7, Stainless steel 1.4305, Hose 5x3](/web/image/product.template/213276/image_128/%5B156211%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20Stainless%20steel%201.4305%2C%20Hose%205x3?unique=7235c84)
|
Typennummer: 243.08/8-ES-E |
90.70 € | |
