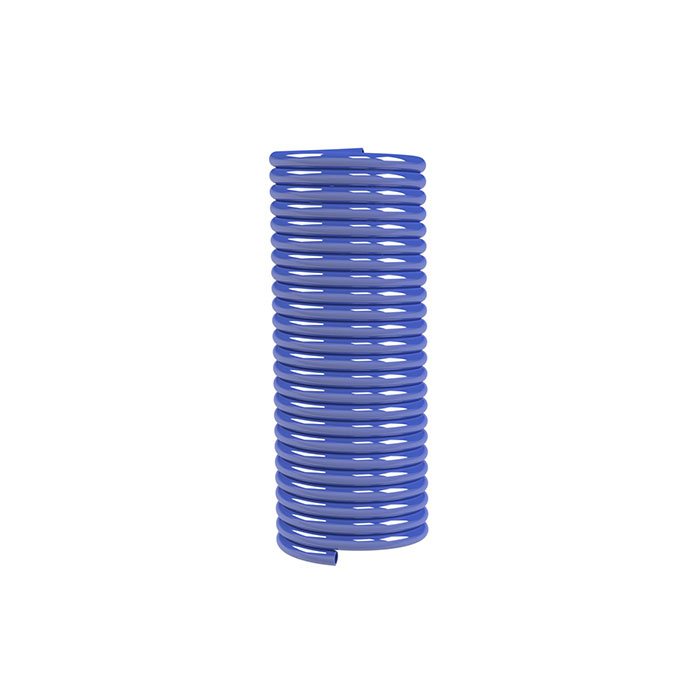

RIEGLER Spiral hose without connections, Polyamide, Hose Ø 12x9, 16.0 m
Type number: SP12PA
EAN: 4047322632577
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose without connections, polyamide, max. operating temp. 80 °C, hose ø 12x9, PN at 23 °C max. 19 bar, length 16.0 m
| Operating temperature min. | -40 °C |
| Operating temperature max. | 80 °C |
| Hose Ø | 12x9 mm |
| Outer spiral Ø | 122 mm |
| Windings | 60 |
| Working length max. | 16 m |
| Max. operating pressure at 23 °C | 19 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
