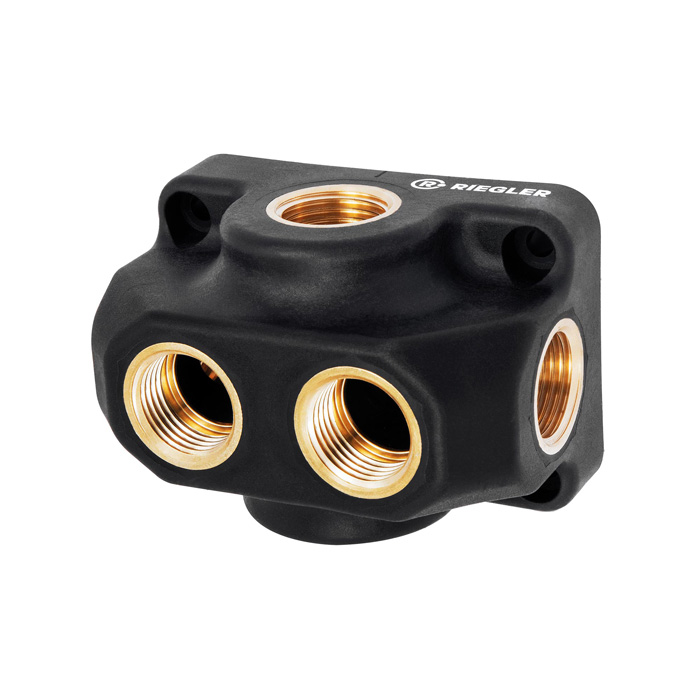

RIEGLER Universal manifold, inlet/outlet G 1/2, connection 6 x G 1/2
Typennummer: UVD12-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Universal distributor, Input/Output G1/2, Connection 6 x G1/2, operat.pressure (air/water) max.15 bar, ambient temp. 1 °C to 50 °C
| Temperature range min. | 1 °C |
| Temperature range max. | 50 °C |
| Housing | glass fiber reinforced plastic PA6 GF 30 |
| Connection thread | 6 x G 1/2 |
| Max. operating pressure | 15 bar |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Input thread | G 1/2 |
| Through-hole thread | G 1/2 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
| SCIP message number Supplier | 5da72ac1-be0d-448e-afb0-2d96f7a29b9b |
