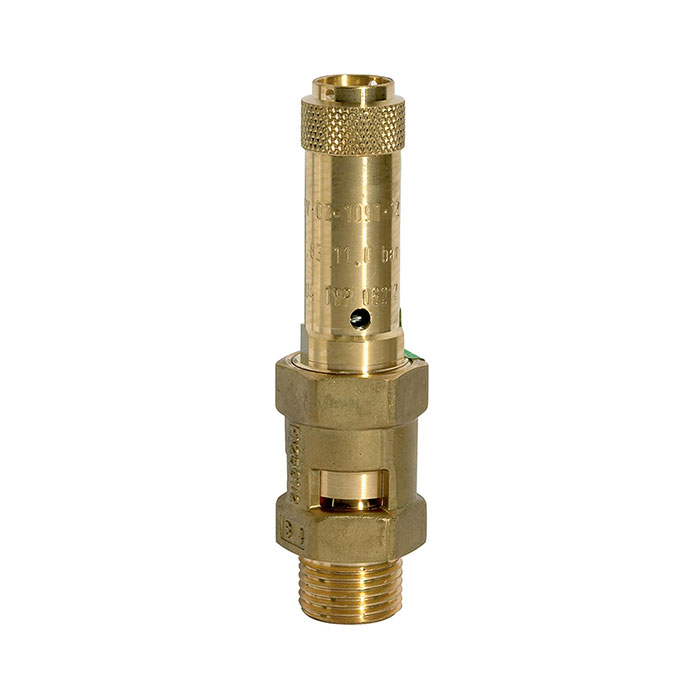

RIEGLER Safety valve, brass, G 1 1/2, set pressure 1,7 bar
Type number: 229.05-1,7
EAN: 4047322702294
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
204939EAN :
4047322702294Category :
Safety Valves and Pressure Limiting ValvesWeight :
1.75 kgSafety valve, high-performance version, brass, operating temp. -40 °C to 200 °C, G 1 1/2, SW 55, set pressure 1.7 bar
| A | 22 mm |
| Response pressure min. | 1.7 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| Max. operating pressure | 26 bar |
| Operating pressure min. | 0.5 bar |
| Operating temperature max. | 200 °C |
| Operating temperature min. | -40 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | FPM |
| do | 32 mm |
| Pressure spring | Carbon steel |
| Housing | Brass |
| Thread | G 1 1/2 |
| H | 178 mm |
| Class name | MAX |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 55 mm |
| Theme shop | SAFETY |
