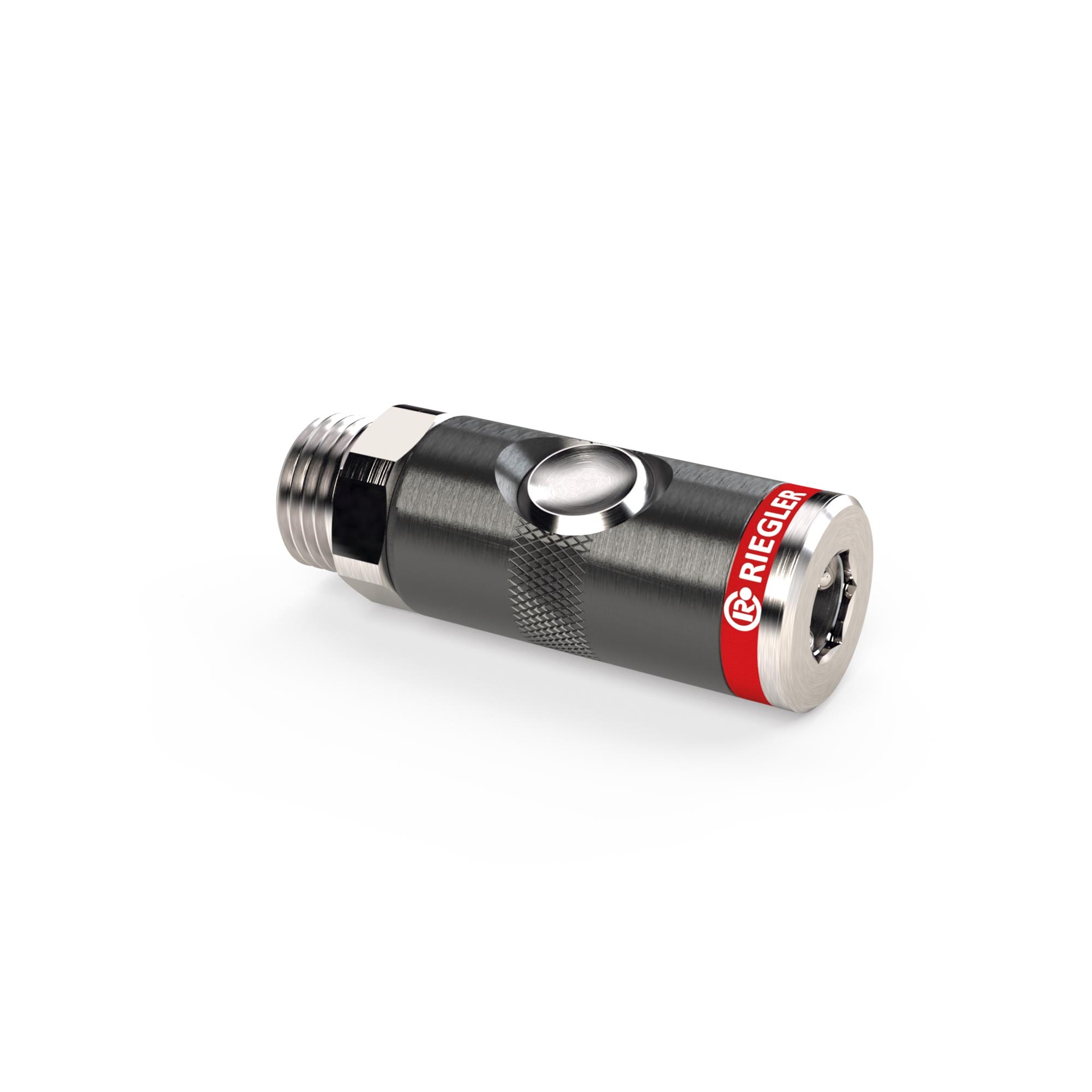

RIEGLER Pushbutton safety coupling I.D. 7.4, G 1/2 ET
Typennummer: DKSKAG12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pushbutton safety coupling I.D. 7.4, rotating, Aluminium, G 1/2 ET, Operating pressure max. 12 bar, Temp. -20 °C to 70 °C
| Housing | Aluminum, anodized |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 70 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 70 °C |
| Flow rate | 1600 l/min (air) |
| Interior parts | Stainless steel 1.4310 |
| Threaded piece | Nickel-plated brass |
| Valve | Hardened and galvanized steel |
| Button | Hardened and galvanized steel |
| SW | 24 mm |
| NW | 7.4 |
| Length | 73.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, AL2011 |
| Class name | MAX |
