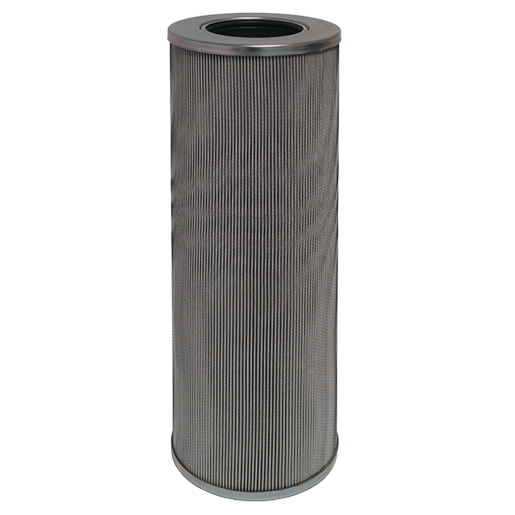

Filtration Group Comex N 0630 DN 10
EcoParts replacement filter element suitable for Normelemente filters.
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) EcoParts filter element N 63 DN 2 1 / 7691228
has the following advantages:
Defined filter performance and cleanliness class
Defined service life
High functionality and safety
High reliability and cost-effectiveness
Certified quality
Tested according to DIN and ISO standards with all current industry approvals
| Mounting diameter (mm) | 60.4 |
| Outer diameter (mm) | 100 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 10 |
| Filter material | Glass fiber |
| Height (mm) | 398.5 |
| Inner diameter (mm) | 60.4 |
| Medium | Hydraulic oil |
| Nominal size (l/min) | 630 |
| Original manufacturer | Standard |
| Seal material | NBR |
| Compatible with SF filter | HY 14362 |
