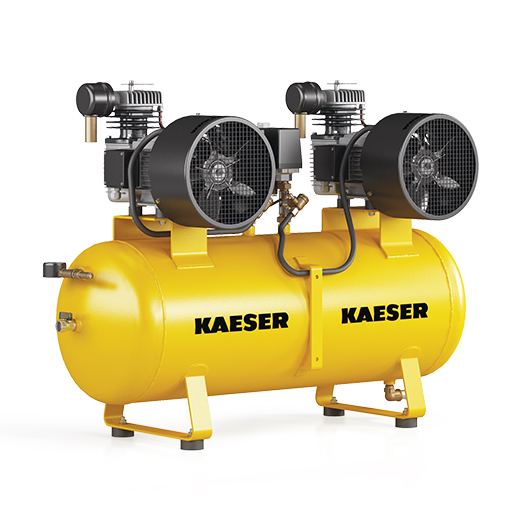

KAESER Industrial reciprocating compressor twin system model KCCD 130-100
Volume flow at 6 bar: 2 x 80 l/min | Maximum overpressure: 10 bar | Pressure tank: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
1.1712.2Category :
Oil-Lubricated Industrial CompressorsWeight :
90.00 kgDelivery area :
Germany- two compressor units on one compressed air tank, compact and space-saving
- Ideal as an auxiliary compressor and with an existing compressed air tank
- Reliable compressed air supply at all times, even when servicing a compressor unit
- Oil-lubricated and dry-running versions
- Ready for immediate operation
| Volume flow at 6 bar (l/min) | 2x 80 |
| Volume flow at 8 bar (l/min) | 2x 73 |
| Max. Overpressure (bar) | 10 |
| Rated power drive motor (kW) | 2x 0,75 |
| Number of cylinders | 2x 1 |
| Nominal synchronous speed (1/min) | 1.500 |
| Volume of compressed air tank (litres) | 90 |
| Emission sound pressure level (dB(A)) | 69 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 1.090 |
| Depth (mm) | 430 |
| Height (mm) | 780 |
| Weight (kg) | 90 |
| Design | stationary |
