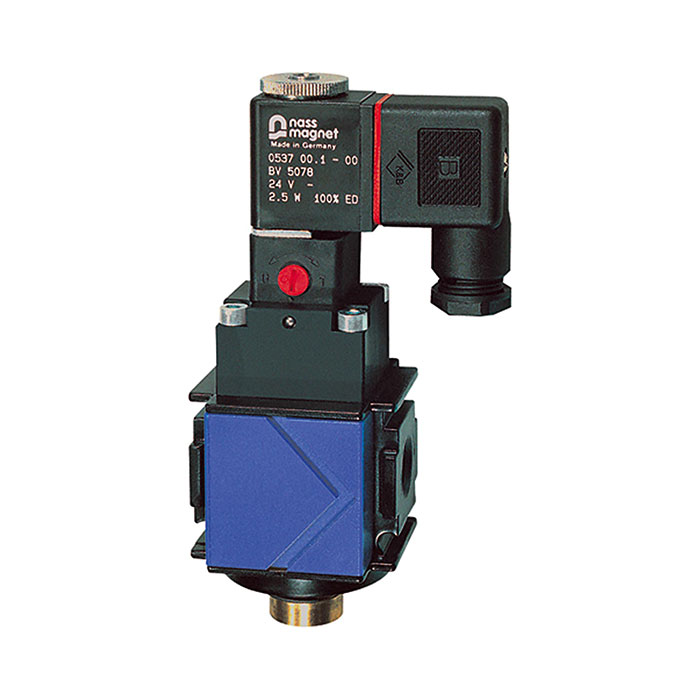

RIEGLER Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 1, G 3/8
Type number: VS 23
EAN: 4047322169530
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Switching valve (3/2-way valve) "variobloc", 24 V DC, BG 1, G 3/8, operating pressure 3 - 10 bar
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Protection class | IP 65 according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Operating voltage | 24 V DC |
| Working pressure min. | 3 bar |
| Working pressure max. | 10 bar |
| Thread | G 3/8 |
| Flow rate | 2600 l/min |
| BG | 1 |
| A | 48 mm |
| B | 147 mm |
| C | 108 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | PLUS |
