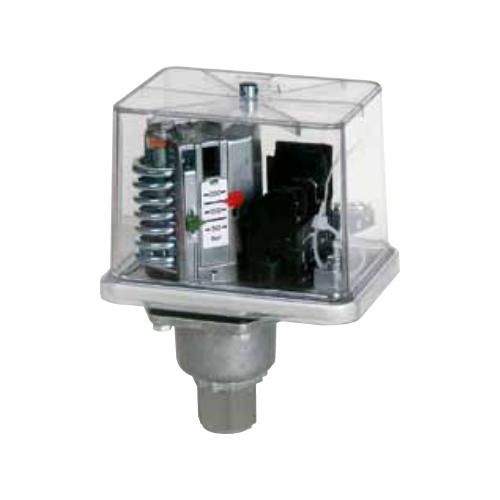

TIVAL Pressure switch FF 4-12 AAG 1 - 12 bar 1/4" stainless steel
max. operating pressure 12 bar
Upper switching point: adjustable 1 - 12 bar
Lower switching point: adjustable 0.5 - 11.2 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-12 AAG 1010074
max. operating pressure 12 bar
with corrugated stainless steel pipe
declaration of conformity according to PED
media temperature up to 200°C, demineralized water, oil, air
pressure connection: G (G 1/4" female thread DIN ISO 228/I), stainless steel
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
VDE 0660, IEC 337-1, IEC 553-1
Weitere Informationen siehe unter Technische Daten
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 1 ... 12 |
| Lower switching point adjustable (bar) | 0,5 ... 11,2 |
| small pressure difference (bar) | 0,5 0,8 |
| Max. Operating pressure (bar) | 12 |
| Max. Test pressure (bar) | 16 |
| Factory setting (bar) | 6 / 7 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
