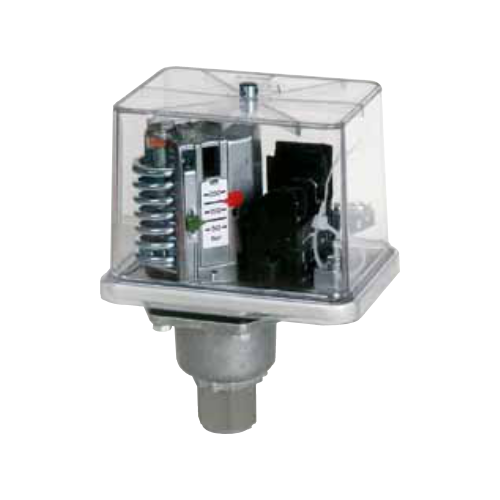

TIVAL Pressure switch FF 4-12 AAG 1 - 12 bar 1/4" stainless steel
max. operating pressure 12 bar
Upper switching point: adjustable 1 - 12 bar
Lower switching point: adjustable 0.5 - 11.2 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-12 AAG pressure switch 1 - 12 bar - stainless steel, up to +200 °C | Art. 1010074
The TIVAL Pressure switch with stainless steel diaphragm bellows combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 1 ... 12, the lower switching point is adjustable from 0.5 ... 11.2. Connection: G 1/4" stainless steel - robust design in matching material variant. Application range: Demineralized water - with proven long-term stability. max. operating pressure: 12 bar, medium temperature: up to +200°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 1 ... 12 |
| Lower switching point adjustable (bar) | 0,5 ... 11,2 |
| small pressure difference (bar) | 0,5 0,8 |
| Max. Operating pressure (bar) | 12 |
| Max. Test pressure (bar) | 16 |
| Factory setting (bar) | 6 / 7 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
