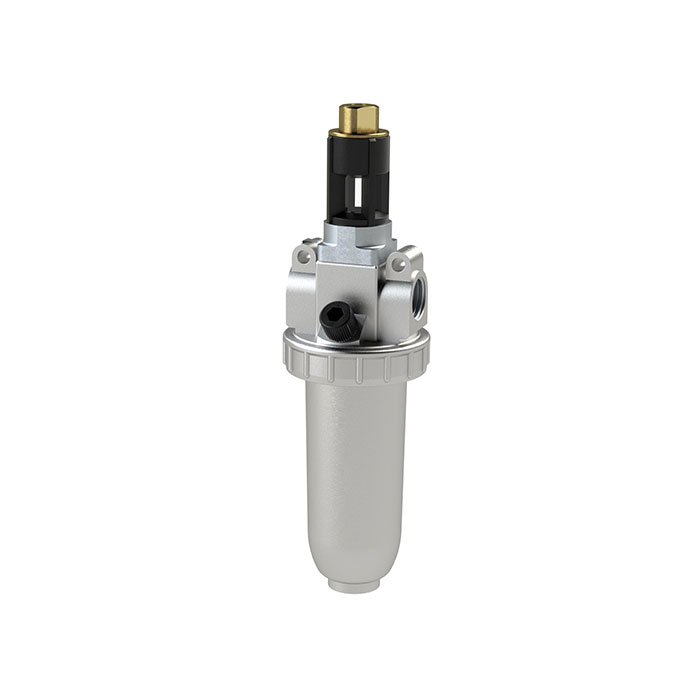

RIEGLER Mist oiler »Standard« with Metal container, Size 3, G 3/4
Type number: 761 M
EAN: 4047322117470
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist lubricator "Standard" with metal container and metal drip cap, BG 3, G 3/4, PE max. 25 bar, max. ambient temperature 60 °C
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Dropper attachment | Zinc-glass-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 9000 l/min |
| DN | 20 |
| BG | 3 |
| A | 102 mm |
| C | 58 mm |
| D | 160 mm |
| Class name | EASY |
