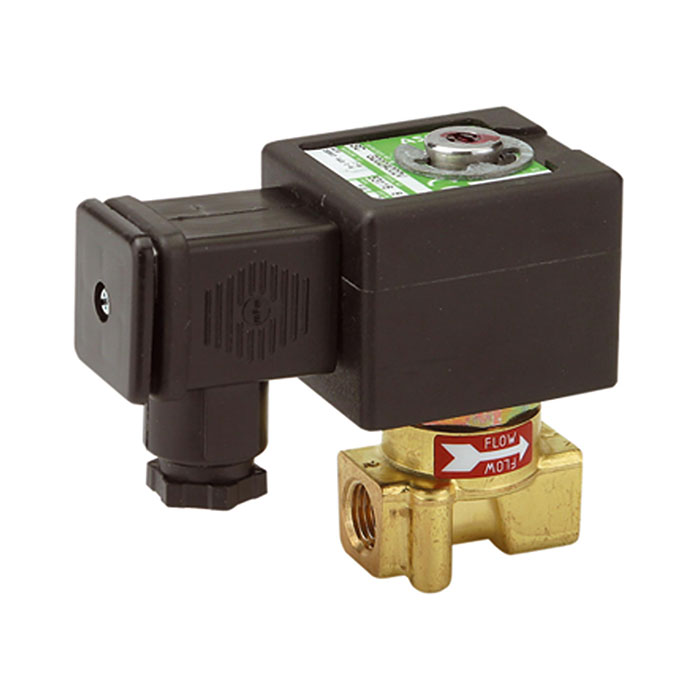

RIEGLER Proportional control valve »posiflow«, 24 V DC, NC, G 3/8, DN 7.1
Type number: PV 2016
EAN: 4047322163453
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Proportional control valve "posiflow", for air / gas, 24 V DC, NC, G 3/8, DN 7.1, operating pressure difference max. 1.0 bar
| Medium | Air, neutral gases, water, oil |
| Housing | Brass |
| Sealing material | FKM |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 75 °C |
| Interior parts | Stainless steel |
| Control | via plug amplifier 0 - 10 V, 0 - 20 mA, 4 - 20 mA |
| Failsafe behaviour | tight-closing with voltage drop |
| Valve disc | FKM |
| Valve seat | Brass |
| Print area | Vacuum up to 8 bar |
| Thread | G 3/8 |
| DN | 45298 |
| Operating pressure difference max. | 1 bar |
| A | 85 mm |
| B | 48 mm |
| C | 97 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
