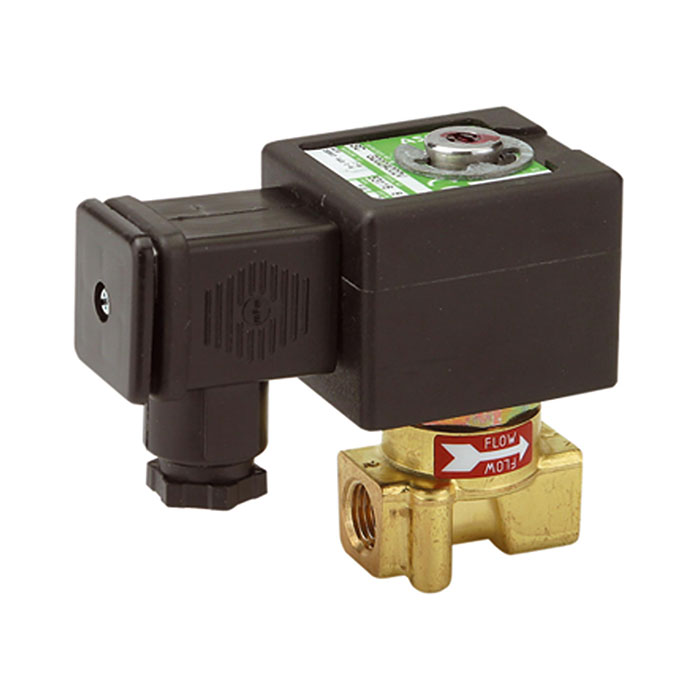

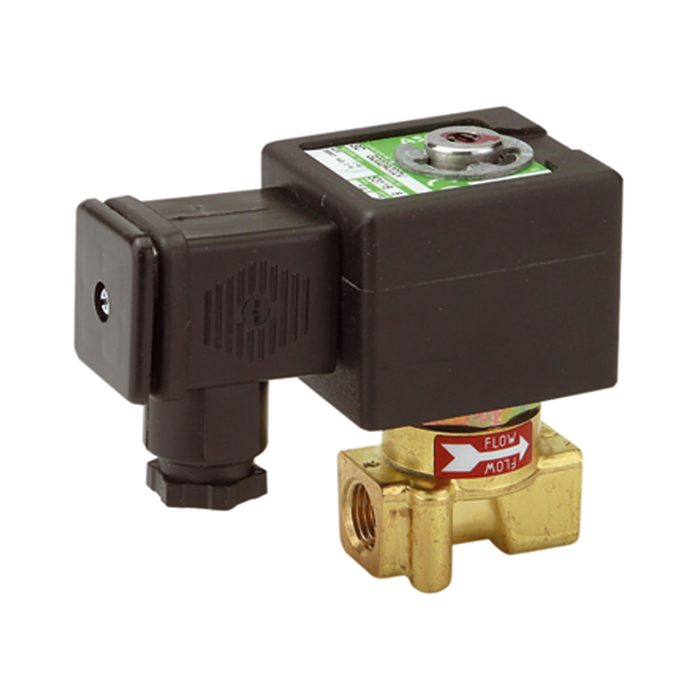

RIEGLER Proportional control valve »posiflow«, 24 V DC, NC, G 3/8, DN 7.1
Type number: PV 2016
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Proportional control valve "posiflow" L/G made of brass, for compressed air treatment, G 3/8 - type PV 2016
The RIEGLER proportional control valve "posiflow" L/G, 24VDC, NC, G 3/8, DN 7.1 controls the output pressure continuously and electronically proportional to the input signal. The housing is made of brass with FKM seals. The permissible medium temperature is between -10 °C and 90 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for air, neutral gases, water, oil. Infinitely variable pressure control for maximum process precision.
Field of application
Typical areas of application: Automation technology, process technology and quality control.
| Medium | Air, neutral gases, water, oil |
| Housing | Brass |
| Sealing material | FKM |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 75 °C |
| Interior parts | Stainless steel |
| Control | via plug amplifier 0 - 10 V, 0 - 20 mA, 4 - 20 mA |
| Failsafe behaviour | tight-closing with voltage drop |
| Valve disc | FKM |
| Valve seat | Brass |
| Print area | Vacuum up to 8 bar |
| Thread | G 3/8 |
| DN | 45298 |
| Operating pressure difference max. | 1 bar |
| A | 85 mm |
| B | 48 mm |
| C | 97 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101641] RIEGLER Proportional control valve »posiflow«, 24 V DC, NC, G 1/4, DN 2.4](/web/image/product.template/169613/image_128/%5B101641%5D%20RIEGLER%20Proportional%20control%20valve%20%C2%BBposiflow%C2%AB%2C%2024%20V%20DC%2C%20NC%2C%20G%201-4%2C%20DN%202.4?unique=5fdd642)
|
Type number: PV 2013 |
205.29 € | |
![[101642] RIEGLER Proportional control valve »posiflow«, 24 V DC, NC, G 1/4, DN 3.2](/web/image/product.template/169614/image_128/%5B101642%5D%20RIEGLER%20Proportional%20control%20valve%20%C2%BBposiflow%C2%AB%2C%2024%20V%20DC%2C%20NC%2C%20G%201-4%2C%20DN%203.2?unique=75fa340)
|
Type number: PV 2014 |
205.29 € | |
![[101643] RIEGLER Proportional control valve »posiflow«, 24 V DC, NC, G 3/8, DN 5.6](/web/image/product.template/169615/image_128/%5B101643%5D%20RIEGLER%20Proportional%20control%20valve%20%C2%BBposiflow%C2%AB%2C%2024%20V%20DC%2C%20NC%2C%20G%203-8%2C%20DN%205.6?unique=7e656f9)
|
Type number: PV 2015 |
230.57 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101650] RIEGLER Plug amplifier 24 V DC, for »posiflow«, G 1/4 and G 3/8](/web/image/product.template/169622/image_128/%5B101650%5D%20RIEGLER%20Plug%20amplifier%2024%20V%20DC%2C%20for%20%C2%BBposiflow%C2%AB%2C%20G%201-4%20and%20G%203-8?unique=3ecdf6f)
|
Type number: PV 2920 |
344.29 € | |

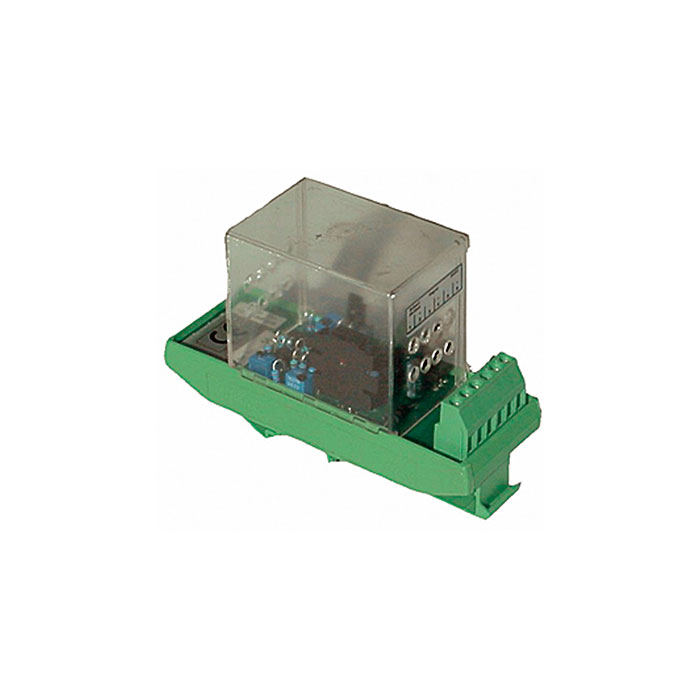

![[101651] RIEGLER Chopper amplifier (for mounting in control cabinet), 24 V DC](/web/image/product.template/169623/image_128/%5B101651%5D%20RIEGLER%20Chopper%20amplifier%20%28for%20mounting%20in%20control%20cabinet%29%2C%2024%20V%20DC?unique=d76deb5)
|
