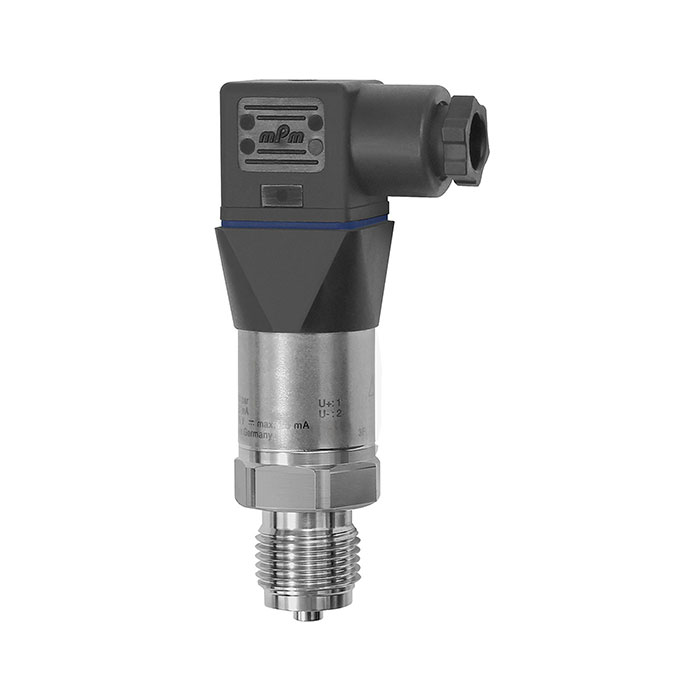

RIEGLER Electr. pressure transducer, 0 - 6 bar, G 1/2, CrNi steel 1.4571

Price:

379.69 €

RIEGLER Electr. pressure transducer, 0 - 6 bar, G 1/2, CrNi steel 1.4571
RIEGLER Electr. pressure transducer, 0 - 6 bar, G 1/2, CrNi steel 1.4571
490.46 € 490.46 €
RIEGLER Electr. pressure transducer, -1 / 0 bar, G 1/2, CrNi steel 1.4571
RIEGLER Electr. pressure transducer, -1 / 0 bar, G 1/2, CrNi steel 1.4571
443.00 € 443.00 €

RIEGLER Electr. pressure transducer, 0 - 6 bar, G 1/2, CrNi steel 1.4571

https://www.filcom-technik.de/web/image/product.template/170702/image_1920?unique=bdfd984

Type number: 897.6

EAN: 4047322380690

379.69 € 379.69 EUR 379.69 € VAT Included

531.79 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

102730

EAN :

4047322380690

Weight :

0.15 kg

Electrical pressure transmitter, general industrial applications, non-linearity 0.25%, measuring range 0 - 6.0 bar, G 1/2, stainless steel 1.4571

Housing Stainless steel 1.4571
Protection class IP 65 according to EN 60529
Electrical connection with angled plug to DIN EN 175301-803 A
Operating voltage DC 8 ... 36 V
Medium temperature min. -30 °C
Medium temperature max. 100 °C
Ambient temperature min. -30 °C
Ambient temperature max. 100 °C
Type S-20
Wetted parts Stainless steel 1.4571
Non-linearity up to 0.25% of the margin
Output signal 4 - 20 mA, 2-wire
Thread G 1/2
Measuring range min. bar 0
Measuring range max. bar 6
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Lower / Upper measuring range limit Overpressure
Class name MAX
