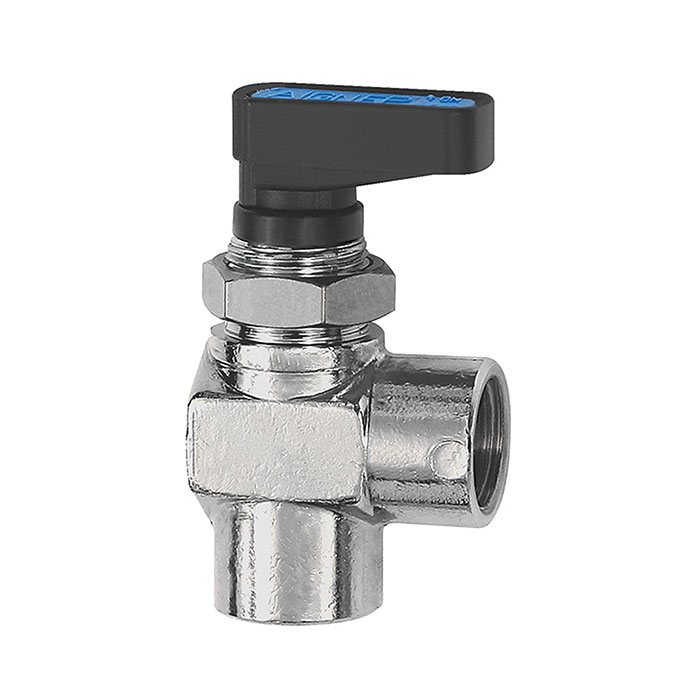

RIEGLER Angled mini ball valve, Control panel integration, G 1/8 IT
Type number: 380.01
EAN: 4047322397230
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Angle mini ball valve, panel mounting, chrome-plated brass, operating temp. -20 °C to 80 °C, G 1/8 female thread, DN 5, PN -0.99 - 20 bar
| Housing | Chrome-plated brass |
| Operating pressure min. | -0.99 bar |
| Max. operating pressure | 20 bar |
| Area of application | Compressed air, water, oil |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | PA 66 glass fiber reinforced |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/8 FEMALE THREAD |
| DN | 5 |
| SW 1 | 17 mm |
| SW 2 | 17 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| L | 28.5 mm |
| G | 19 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| H1 | 33.5 mm |
| H2 | 15.5 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
