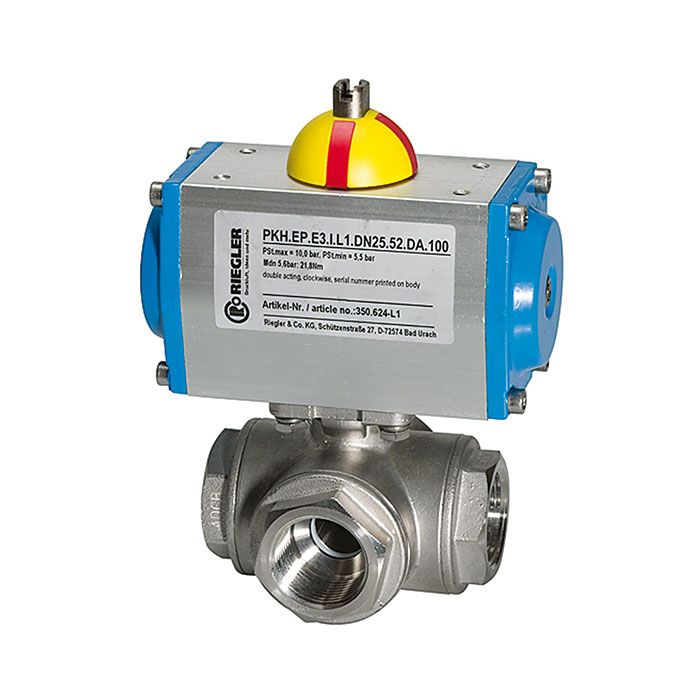

RIEGLER Stainless steel ball valve, Pneumat. actuation drive, T-hole T2
Type number: 350.915-T2
EAN: 4047322077941
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-way stainless steel ball valve, pneumat. Actuator, T-bore T2, operating temp. -20 °C to 70 °C, Rp 1 1/4, DN 32, PN max. 63 bar
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 1/4 |
| DN | 32 |
| SW | 50 mm |
| Position | T 2 |
| A | 133 mm |
| B | 153.5 mm |
| D | 36.5 mm |
| L | 90 mm |
| Execution | double-acting |
| Class name | STAINLESS STEEL |
