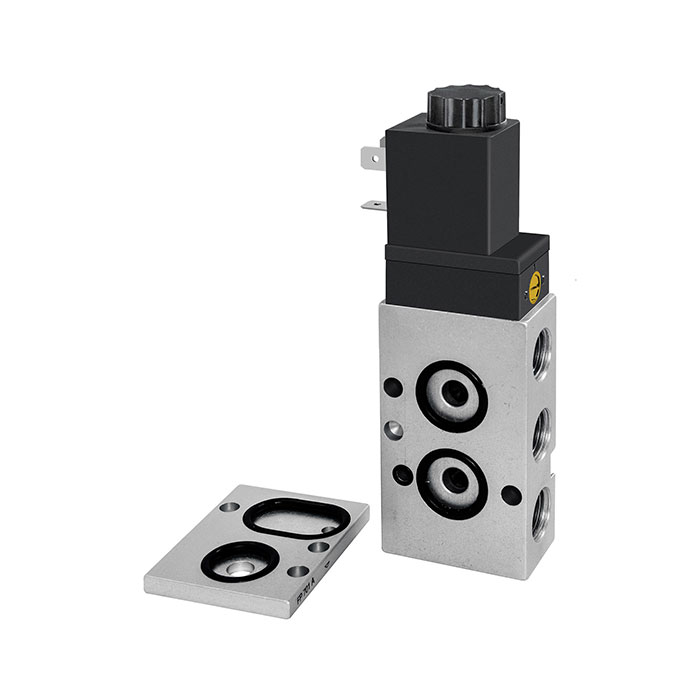

RIEGLER 3/2-5/2-way valve, NAMUR, Air spring, G 1/4, 24 V DC
Type number: 552.12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-5/2-way valve, NAMUR, with air spring, Anodised aluminium, Temp. max. 50 °C, Working pressure 1.5 10 bar, G 1/4, 24 V DC
| Medium | Air, neutral gases (filtered) |
| Housing | Anodized aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 50 °C |
| Slider | Stainless steel |
| Manual override | resting |
| Flow rate | 1250 l/min |
| DN | 7 |
| Scope of delivery | Device plug PG 9, adapter plate, screws, sealing material |
| Tension | 24 V DC |
| Connection | G 1/4 (connection 1), G 1/4 (connection 3 and 5) |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103653] RIEGLER 3/2-5/2-way valve NAMUR, Air spring, G 1/4, 230 V, 50Hz](/web/image/product.template/171615/image_128/%5B103653%5D%20RIEGLER%203-2-5-2-way%20valve%20NAMUR%2C%20Air%20spring%2C%20G%201-4%2C%20230%20V%2C%2050Hz?unique=684e2dc)
|
Type number: 552.11 |
60.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[103663] RIEGLER Throttle plate for NAMUR valves, 3-way, Knurled screw](/web/image/product.template/171625/image_128/%5B103663%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%203-way%2C%20Knurled%20screw?unique=c3dee72)
|
Type number: 551.41 |
102.55 € | |

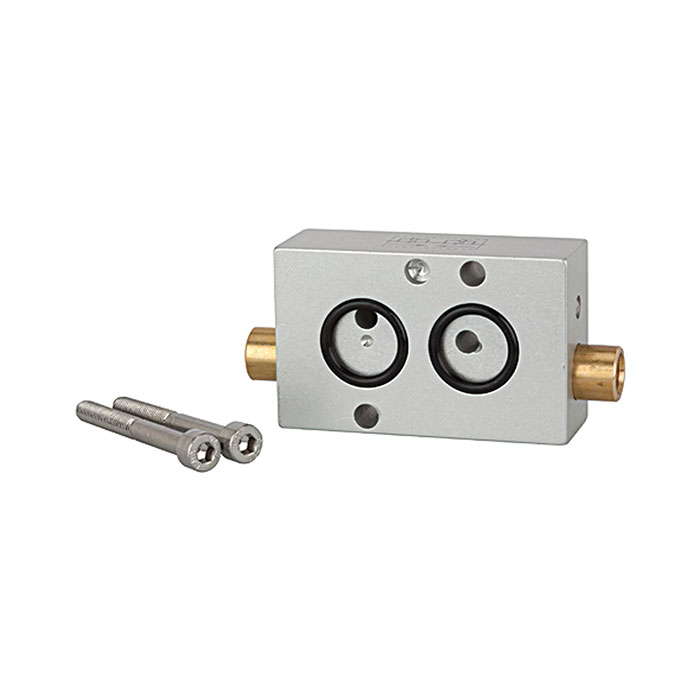

![[103664] RIEGLER Throttle plate for NAMUR valves, 3-way, Screwdriver](/web/image/product.template/171626/image_128/%5B103664%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%203-way%2C%20Screwdriver?unique=1c42d03)
|
Type number: 551.42 |
102.55 € | |

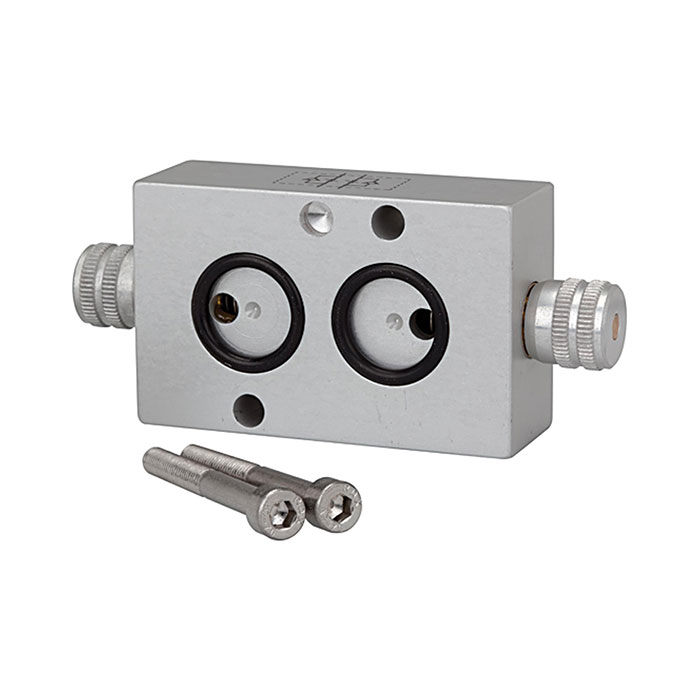

![[103665] RIEGLER Throttle plate for NAMUR valves, 5-way, Knurled screw](/web/image/product.template/171627/image_128/%5B103665%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%205-way%2C%20Knurled%20screw?unique=7e17b5b)
|
Type number: 551.51 |
93.65 € | |
![[103666] RIEGLER Throttle plate for NAMUR valves, 5-way, Screwdriver](/web/image/product.template/171628/image_128/%5B103666%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%205-way%2C%20Screwdriver?unique=fcadbfe)
|
Type number: 551.52 |
93.65 € | |
