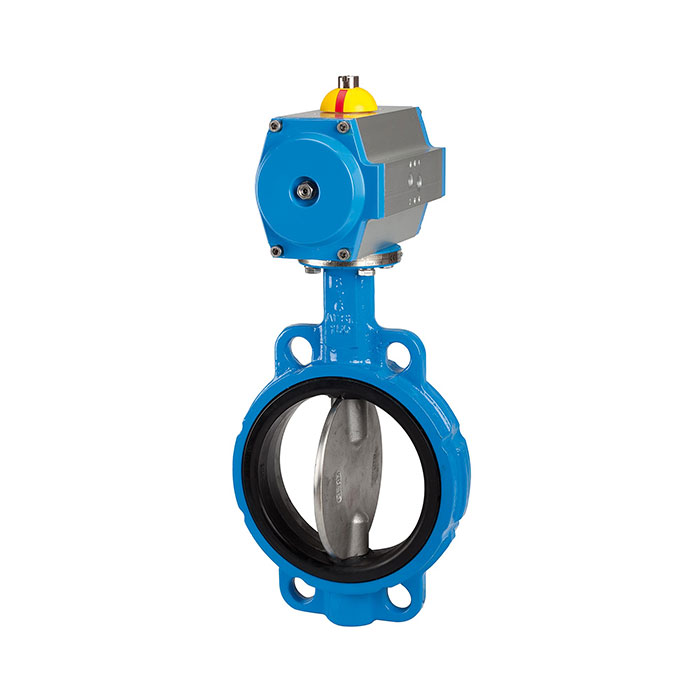

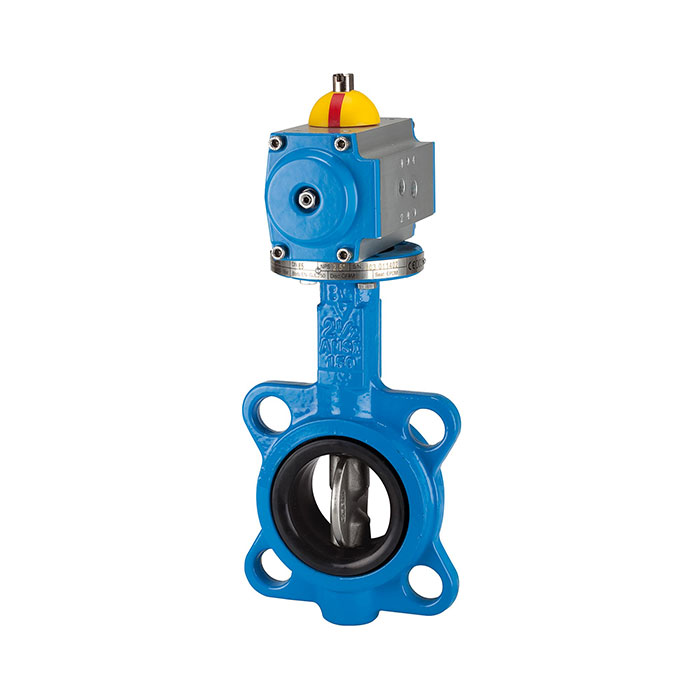

RIEGLER Intermediate flange blocking flap, Pneum. actuation drive, DN 125
Type number: 350.5125B
EAN: 4047322338998
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Zwischenflansch-Absperrklappe, pneumt. Stellantrieb, einfachwirkend, Betriebstemp. -15 °C bis 120 °C, DN 125, PN max. 16 bar
| Housing | Grey cast iron GG25 epoxy resin coated, color RAL 5015 |
| Sealing material | EPDM |
| Max. operating pressure | 16 bar |
| Control pressure min. | 5 bar |
| Control pressure max. | 5.5 bar |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| Shift shaft | SS416 |
| Shift shaft seal | EPDM |
| Rotation angle | 90 ° |
| Valve adapter | available as standard, control via 3/2, 5/2-way valve |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| DN | 125 |
| Disc | Stainless steel CF8M/1.4404 |
| B | 59 mm |
| L | 190 mm |
| Execution | single-acting - spring-closing |
| H1 | 123 mm |
| H2 | 191 mm |
| H3 | 361 mm |
| Class name | FLEX |
