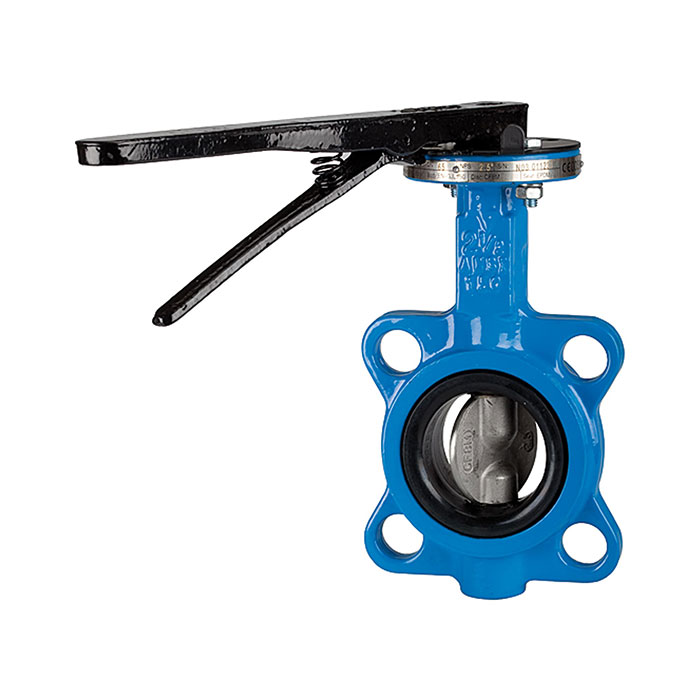

RIEGLER Intermediate flange blocking flap, Manual lever, DN 65
Type number: 350.6065B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Intermediate flange blocking flap, Manual lever, Operating temperature -15 °C to 120 °C, DN 65, PN max. 16 bar
| Housing | Grey cast iron GG25 epoxy resin coated, color RAL 5015 |
| Sealing material | EPDM |
| Max. operating pressure | 16 bar |
| Hand lever | GG25 epoxy resin coated |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 120 °C |
| Shift shaft | SS416 |
| Shift shaft seal | EPDM |
| Shaft | SS416 |
| DN | 65 |
| Disc | Stainless steel CF8M/1.4404 |
| B | 49 mm |
| L | 115 mm |
| H1 | 78 mm |
| H2 | 155 mm |
| H3 | 255 mm |
| Class name | FLEX |
