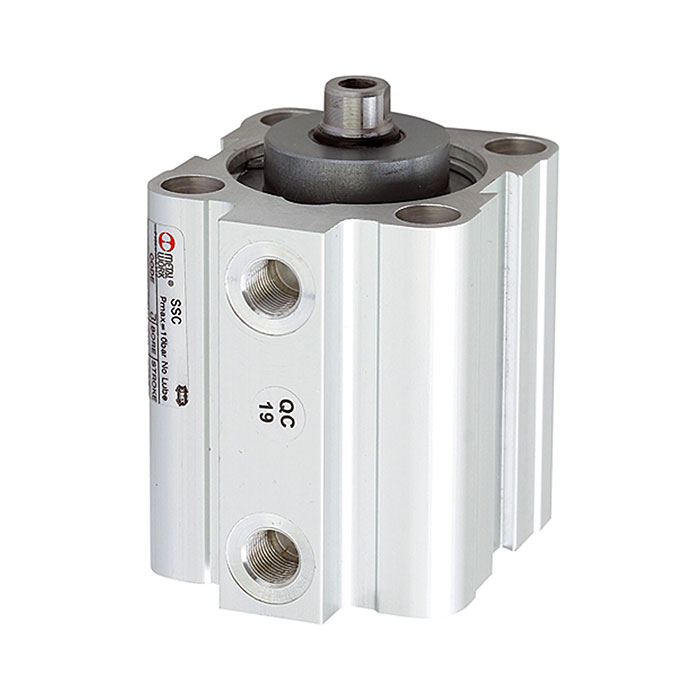

RIEGLER Short stroke cylinder, double-acting, Piston Ø 20, Stroke 40, M5
Type number: 3.DM.20040
EAN: 4047322070409
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Short-stroke cylinder, double-acting, with solenoid, piston Ø 20, stroke 40, M5, max. working pressure 10 bar, temp. -10 °C to 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Working pressure max. | 10 bar |
| Pipe | Aluminium alloy, anodized |
| Piston rod seal | NBR (PU and FKM at extra charge) |
| Piston seal | NBR (PU and FKM at extra charge) |
| Piston Ø | 20 mm |
| Function | double-acting |
| Response pressure min. | 0.6 bar |
| Stroke | 40 mm |
| Piston rods IG | M5 |
| Connection | M5 |
| Piston rod | C45 steel, hard chrome-plated |
| Head | Lacquered brass |
| Piston | Acetal synthetic resin |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
