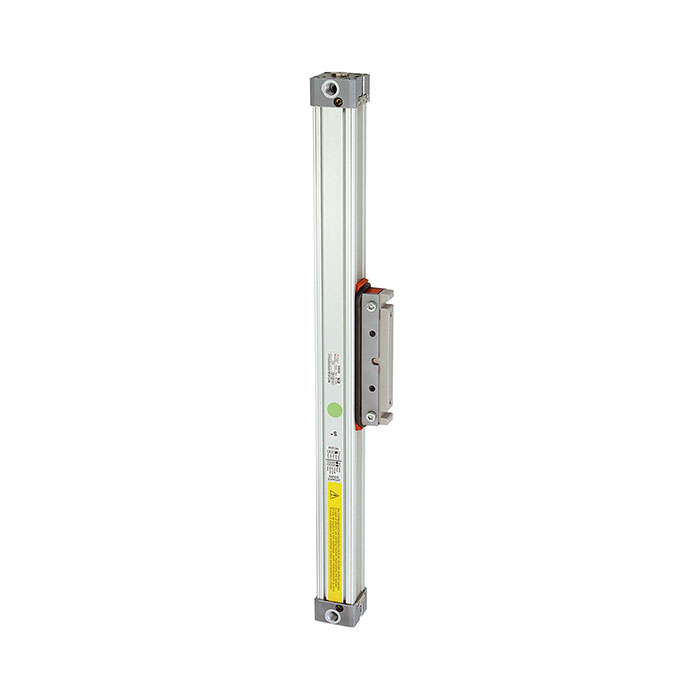

RIEGLER Piston rod-free cylinder, double-acting, Piston Ø 25, Stroke 600

https://www.filcom-technik.de/web/image/product.template/175374/image_1920?unique=211a618

Type number: 6.DD.250600

EAN: 4047322103459

416.55 € 416.55 EUR 416.55 € VAT Included

538.52 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

106317

EAN :

4047322103459

Category :

Rodless Cylinders

Weight :

1.90 kg

Rodless cylinder, double-acting, solenoid, piston Ø 25, stroke 600, G 1/8, working pressure 1 - 8 bar, temp. -10 °C to 80 °C

Temperature range min. -10 °C
Temperature range max. 80 °C
Housing Profile tube made of aluminium alloy, anodized
Sealing material NBR (for speeds up to max. 1 m/s)
Working pressure min. 1 bar
Working pressure max. 8 bar
Carriage (piston guide) Aluminium alloy, anodized
Sealing tapes Stainless steel
Piston Ø 25 mm
Function double-acting
Stroke 600 mm
Force at 6 bar 250 N
Side load max. 1 Nm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
Connection G 1/8
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Class name PLUS
Magnet with magnet
Damping with adjustable damping
