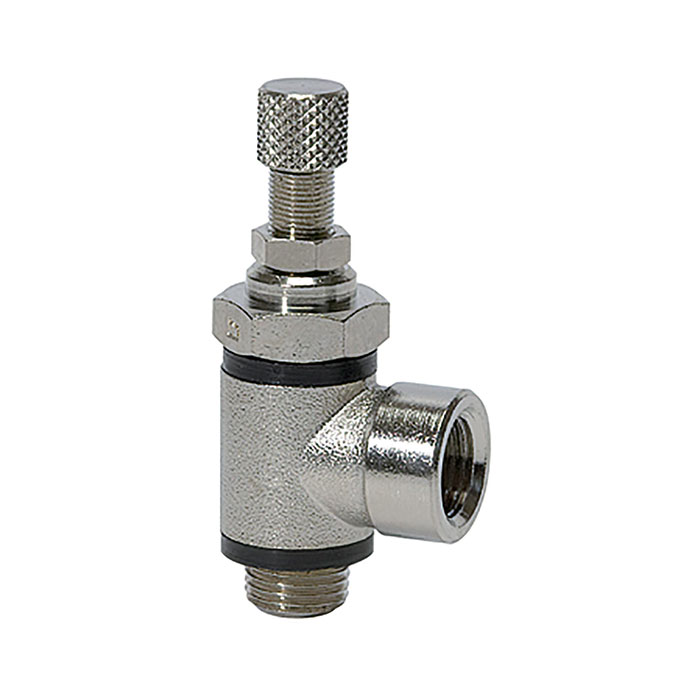

RIEGLER Throttle valve, both directions throttling (B) M5 IT, M5
Type number: 337.005-M5
EAN: 4047322180474
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Throttle valve, throttling on both sides (B), threaded connection, M5 female thread, M5, PN max. 10 bar, temp. -20 °C to 80 °C, MS nickel-plated
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced (only parts in hollow screw design) |
| Silicone-free | Yes |
| Thread | M5 |
| SW | 8 mm |
| Function | Throttling on both sides (B) |
| Connection type | Threaded connection |
| B | 38.9 mm |
| C | 11.5 mm |
| Execution | adjustable with knurled screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
| Construction method | Banjo bolt design |
