RIEGLER Stopper valve pneumatically actuated, G 1/4, Plug connector 6/4
Type number: 67.014-6
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stopper valve pneumatically actuated, G1/4, Plug connector 6/4, Working pressure max. 10 bar, Medium / ambient temp. -10°C to 70°C
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 70 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 70 °C |
| Material | Nickel-plated brass |
| Installation position | any, ring piece can be rotated 360° after tightening |
| Control pressure min. | 1 bar |
| Control pressure max. | 5 bar |
| Connection | G 1/4 |
| Connection | 6 mm |
| Connection | 4 mm |
| B | 58 mm |
| C | 28 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107068] RIEGLER Stopper valve pneumatically actuated, G 1/2, Plug connector 12/4](/web/image/product.template/176125/image_128/%5B107068%5D%20RIEGLER%20Stopper%20valve%20pneumatically%20actuated%2C%20G%201-2%2C%20Plug%20connector%2012-4?unique=ef46be5)
|
Type number: 67.012-12 |
117.61 € | |

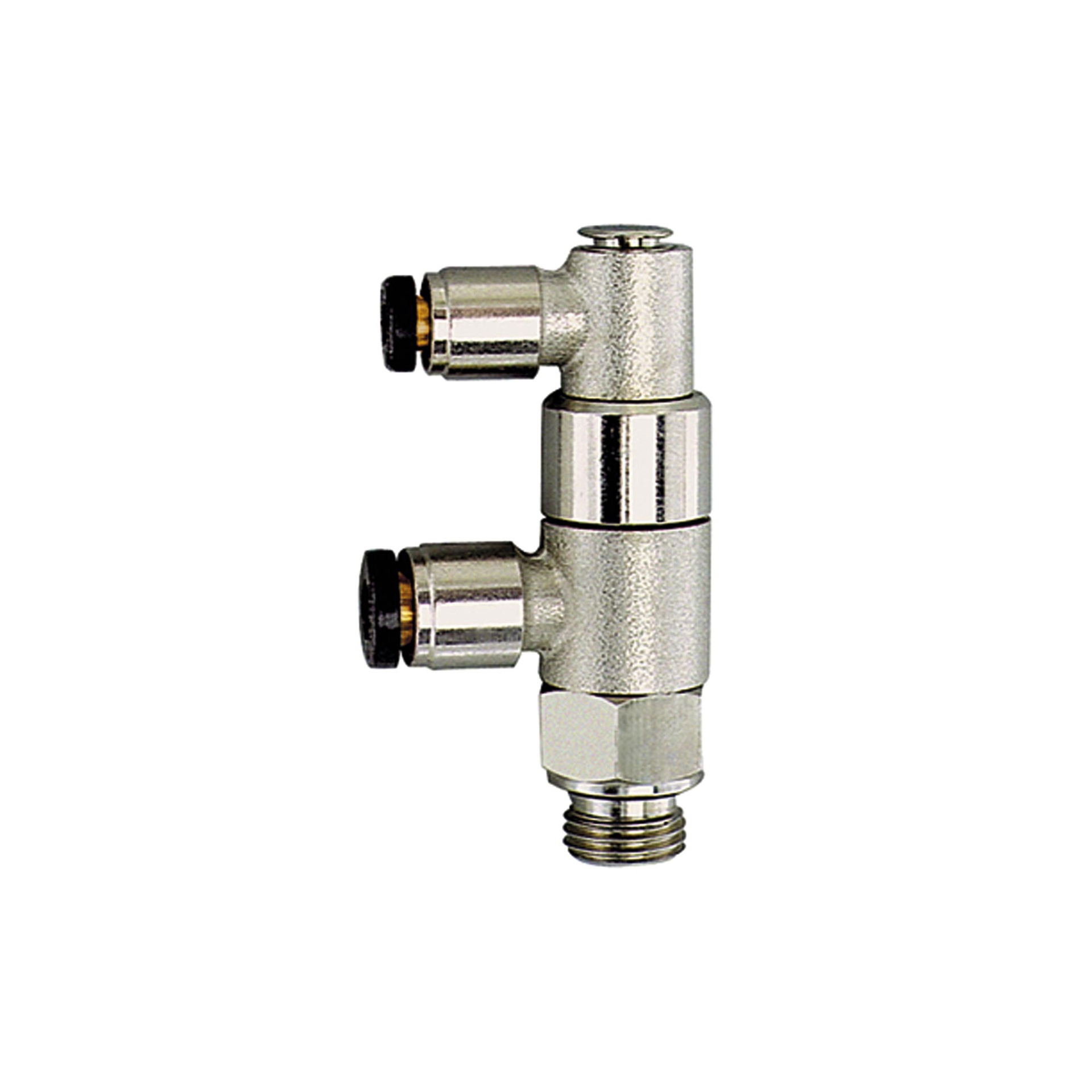

![[107065] RIEGLER Stopper valve pneumatically actuated, G 1/8, Plug connector 6/4](/web/image/product.template/176122/image_128/%5B107065%5D%20RIEGLER%20Stopper%20valve%20pneumatically%20actuated%2C%20G%201-8%2C%20Plug%20connector%206-4?unique=4c8a956)
|
