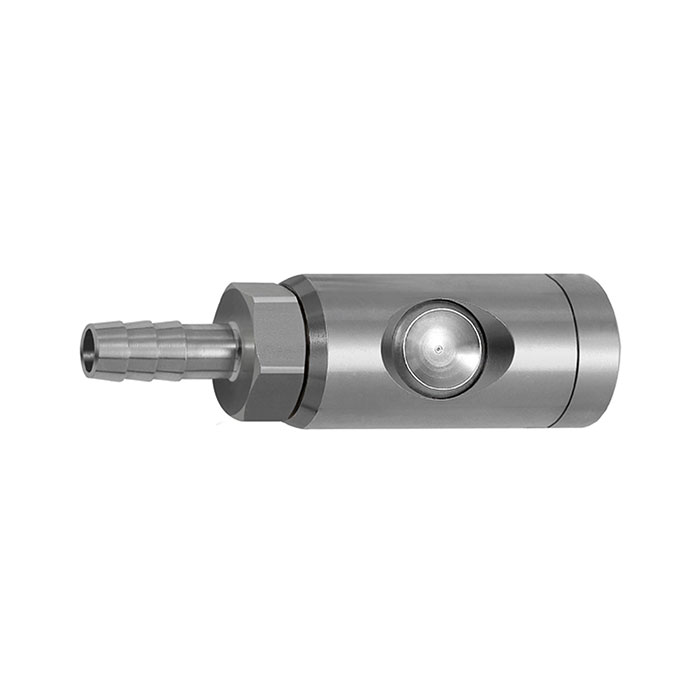

RIEGLER Pushbutton safety coupling I.D. 7.4, rotating, 1.4404, I.D. 13
Type number: 244.33-DES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pushbutton safety coupling I.D. 7.4, rotating, Stainless steel 1.4404, Sleeve I.D. 13, Operating pressure max. 12 bar
| Housing | Stainless steel 1.4404 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 150 °C |
| Flow rate | 1600 l/min (air) |
| Interior parts | Stainless steel 1.4404 |
| Threaded piece | Stainless steel 1.4404 |
| Valve | Stainless steel 1.4404 |
| Button | Stainless steel 1.4404 |
| SW | 21 mm |
| NW | 7.4 |
| Length | 88.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
