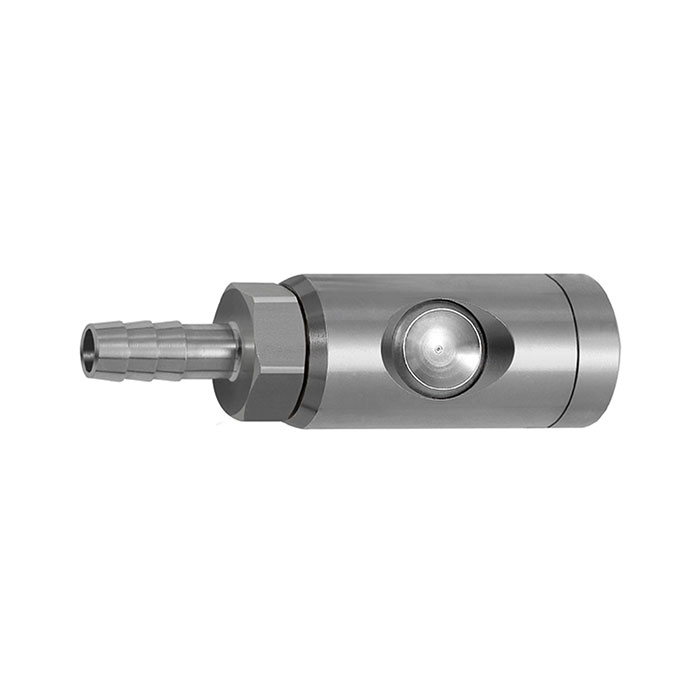

RIEGLER Pushbutton safety coupling I.D. 7.4, rotating, 1.4404, I.D. 13
Type number: 244.33-DES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Push-button safety coupling made of stainless steel 1.4404, for compressed air supply, max. 12 bar - Type 244.33-DES
The RIEGLER push-button safety coupling NW 7.4, rotatable, ES, spout LW 13 disconnects the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of stainless steel 1.4404 with FKM seals. Designed for a maximum operating pressure of 12 bar. The permissible medium temperature is between -20 °C and 150 °C. Connection thread LW 13 - suitable for common industry standards. The flow rate is 1600 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Housing | Stainless steel 1.4404 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 150 °C |
| Flow rate | 1600 l/min (air) |
| Interior parts | Stainless steel 1.4404 |
| Threaded piece | Stainless steel 1.4404 |
| Valve | Stainless steel 1.4404 |
| Button | Stainless steel 1.4404 |
| SW | 21 mm |
| NW | 7.4 |
| Length | 88.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
