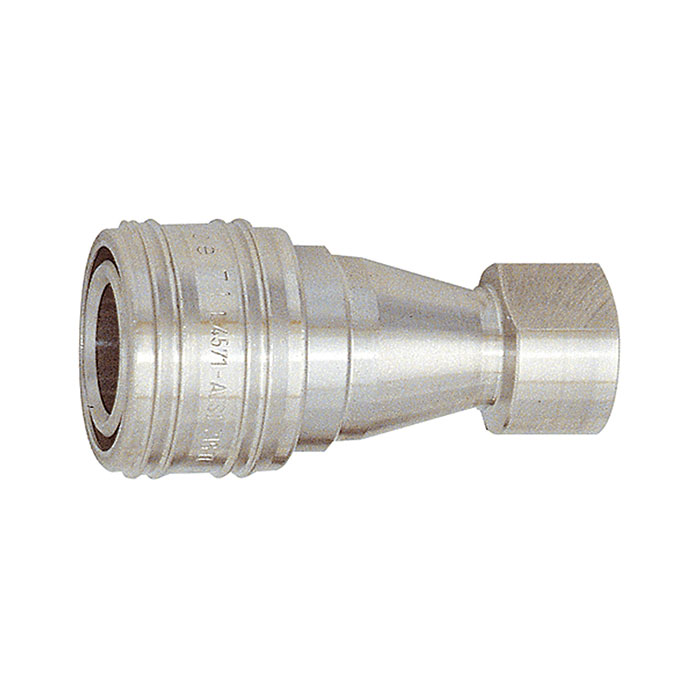

RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 3/4 IT, I.D. 13
Type number: 246.15
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hydraulic coupling locking on both sides, Stainless steel 1.4305, G 3/4 IT, I.D. 13, Operating pressure max. 160 bar
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 160 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Ball | Stainless steel 1.4401 |
| Spring | Stainless steel 1.4310 |
| Sleeve | Stainless steel 1.4305 |
| Valve | Stainless steel 1.4305 |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 4500 l/min |
| SW | 34 mm |
| NW | 13 |
| Length | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/4 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107706] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/2 IT, I.D. 11](/web/image/product.template/191607/image_128/%5B107706%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%201-2%20IT%2C%20I.D.%2011?unique=74f4642)
|
Type number: 246.14 |
175.99 € | |
![[107704] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/4 IT, I.D. 6.3](/web/image/product.template/191605/image_128/%5B107704%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%201-4%20IT%2C%20I.D.%206.3?unique=feed3f7)
|
Type number: 246.12 |
83.37 € | |
![[107703] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/8 IT, I.D. 4.3](/web/image/product.template/191604/image_128/%5B107703%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%201-8%20IT%2C%20I.D.%204.3?unique=b1d5489)
|
Type number: 246.11 |
82.00 € | |
![[107705] RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 3/8 IT, I.D. 7.5](/web/image/product.template/191606/image_128/%5B107705%5D%20RIEGLER%20Hydraulic%20coupling%20lock%20on%20both%20sides%2C%201.4305%2C%20G%203-8%20IT%2C%20I.D.%207.5?unique=c9439ea)
|
Type number: 246.13 |
129.21 € | |
