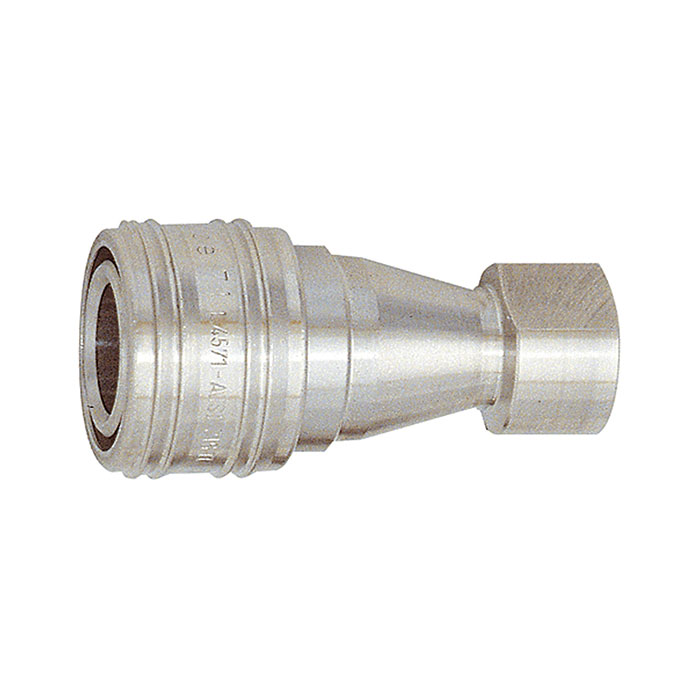

RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 3/4 IT, I.D. 13
Type number: 246.15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hydraulic coupling, lockable on both sides, made of stainless steel 1.4305, for compressed air supply - Type 246.15
The RIEGLER hydraulic coupling, shut-off on both sides, ES 1.4305, G 3/4 IG NW 13 connects and disconnects compressed air hoses quickly and safely. The housing is made of stainless steel 1.4305 with FKM seals. Designed for a maximum operating pressure of 160 bar. The permissible medium temperature is between -15 °C and 200 °C. Connection thread G 3/4 IG - suitable for common industry standards. Quick coupling and uncoupling without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 160 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Ball | Stainless steel 1.4401 |
| Spring | Stainless steel 1.4310 |
| Sleeve | Stainless steel 1.4305 |
| Valve | Stainless steel 1.4305 |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 4500 l/min |
| SW | 34 mm |
| NW | 13 |
| Length | 96 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/4 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
