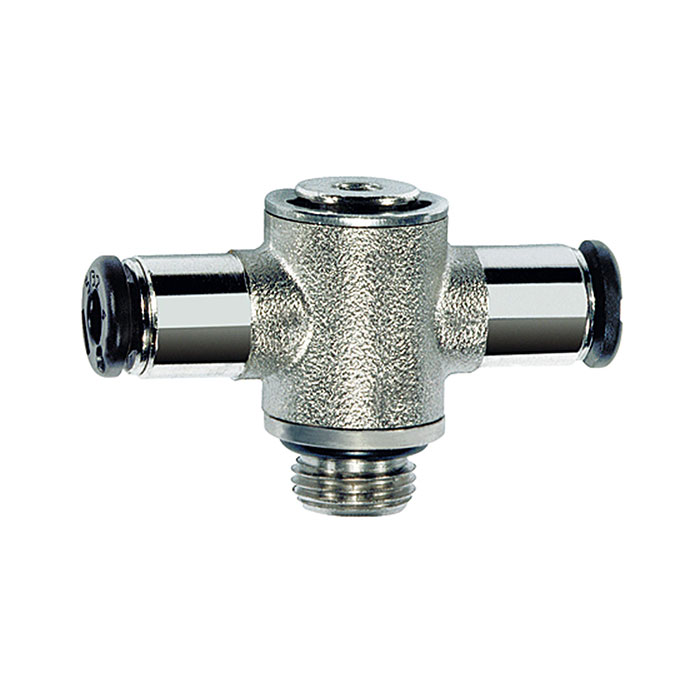

RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/2 o.
Type number: 758.012-12 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-Steckverschraubung »click-clock«, drehbar, G 1/2 a., Schlauch-Außen-Ø 12, Arbeitsdruck -0,99 bis 16 bar, Messing vern., SW 8
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Clamping ring | Stainless steel |
| Recommended hose | PA, PU |
| Thread | G 1/2 |
| SW | 8 mm |
| for hose outer Ø | 12 mm |
| Execution | with hexagon socket, with O-ring |
| L1 | 73 mm |
| L2 | 40.8 mm |
| E | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Construction method | rotatable |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108682] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/4 o.](/web/image/product.template/192579/image_128/%5B108682%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=e8bf3fc)
|
Type number: 758.014-6 M |
6.40 € | |
![[108685] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/4 o.](/web/image/product.template/192582/image_128/%5B108685%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=a67b2a9)
|
Type number: 758.014-12 M |
8.76 € | |
![[108684] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/4 o.](/web/image/product.template/192581/image_128/%5B108684%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=847a97f)
|
Type number: 758.014-10 M |
8.47 € | |
![[108683] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/4 o.](/web/image/product.template/192580/image_128/%5B108683%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-4%20o.?unique=6f6a9b5)
|
Type number: 758.014-8 M |
6.40 € | |
![[108680] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/8 o.](/web/image/product.template/192577/image_128/%5B108680%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=6961122)
|
Type number: 758.018-6 M |
6.26 € | |
![[108678] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/8 o.](/web/image/product.template/192575/image_128/%5B108678%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=7513900)
|
Type number: 758.018-4 M |
6.26 € | |
![[108679] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/8 o.](/web/image/product.template/192576/image_128/%5B108679%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=8fff3a4)
|
Type number: 758.018-5 M |
7.82 € | |
![[108681] RIEGLER Push-in T-fitting »click-clock«, rotating, G 1/8 o.](/web/image/product.template/192578/image_128/%5B108681%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%201-8%20o.?unique=6c07575)
|
Type number: 758.018-8 M |
6.30 € | |
![[108688] RIEGLER Push-in T-fitting »click-clock«, rotating, G 3/8 o.](/web/image/product.template/192585/image_128/%5B108688%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%203-8%20o.?unique=86fc1f2)
|
Type number: 758.038-12 M |
11.60 € | |
![[108686] RIEGLER Push-in T-fitting »click-clock«, rotating, G 3/8 o.](/web/image/product.template/192583/image_128/%5B108686%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%203-8%20o.?unique=b2bd3ae)
|
Type number: 758.038-8 M |
10.82 € | |
![[108687] RIEGLER Push-in T-fitting »click-clock«, rotating, G 3/8 o.](/web/image/product.template/192584/image_128/%5B108687%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20G%203-8%20o.?unique=a1cbcf8)
|
Type number: 758.038-10 M |
10.98 € | |
![[108675] RIEGLER Push-in T-fitting »click-clock«, rotating, M5 o.](/web/image/product.template/192572/image_128/%5B108675%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20M5%20o.?unique=a5fe9c1)
|
Type number: 758.005-6 M |
6.00 € | |
![[108674] RIEGLER Push-in T-fitting »click-clock«, rotating, M5 o.](/web/image/product.template/192571/image_128/%5B108674%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20M5%20o.?unique=2088fbd)
|
Type number: 758.005-5 M |
7.28 € | |
![[108673] RIEGLER Push-in T-fitting »click-clock«, rotating, M5 o.](/web/image/product.template/192570/image_128/%5B108673%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20M5%20o.?unique=e002cac)
|
Type number: 758.005-4 M |
5.83 € | |
![[108677] RIEGLER Push-in T-fitting »click-clock«, rotating, M7 o.](/web/image/product.template/192574/image_128/%5B108677%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20M7%20o.?unique=0415a10)
|
Type number: 758.007-6 M |
6.76 € | |
![[108676] RIEGLER Push-in T-fitting »click-clock«, rotating, M7 o.](/web/image/product.template/192573/image_128/%5B108676%5D%20RIEGLER%20Push-in%20T-fitting%20%C2%BBclick-clock%C2%AB%2C%20rotating%2C%20M7%20o.?unique=d671bd5)
|
Type number: 758.007-4 M |
6.76 € | |
