RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 900, G 1/2
Type number: 10.DMD.100900
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard cylinder "SE" ISO 15552, double-act. Solenoid, piston Ø 100, stroke 900, connection G 1/2, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SE series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 100 mm |
| Function | double-acting |
| Stroke | 900 mm |
| Piston rods AG | M20x1.5 |
| Piston rod Ø | 25 mm |
| Connection | G 1/2 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

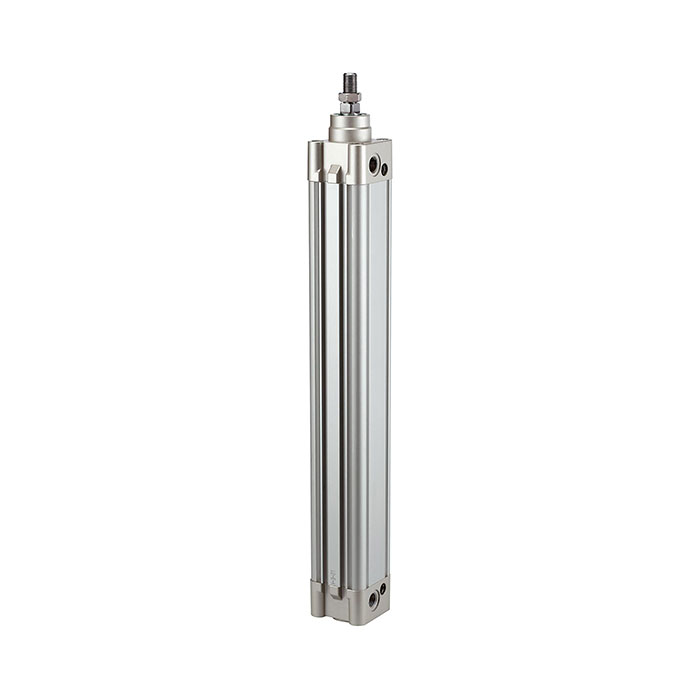

![[170689] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 900, G 1/2](/web/image/product.template/216281/image_128/%5B170689%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20900%2C%20G%201-2?unique=ea1696a)
|
Typennummer: 16.DMD.100900 |
351.36 € | |
