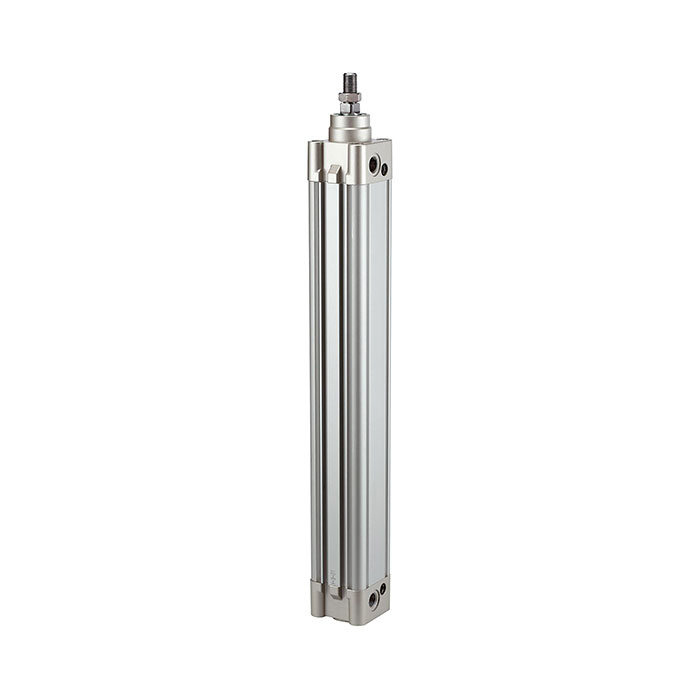

RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 900, G 1/2
Type number: 10.DMD.100900
EAN: 4047322313278
Standard cylinder "SE" ISO 15552, double-act. Solenoid, piston Ø 100, stroke 900, connection G 1/2, working pressure 1-10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SE series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 100 mm |
| Function | double-acting |
| Stroke | 900 mm |
| Piston rods AG | M20x1.5 |
| Piston rod Ø | 25 mm |
| Connection | G 1/2 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
