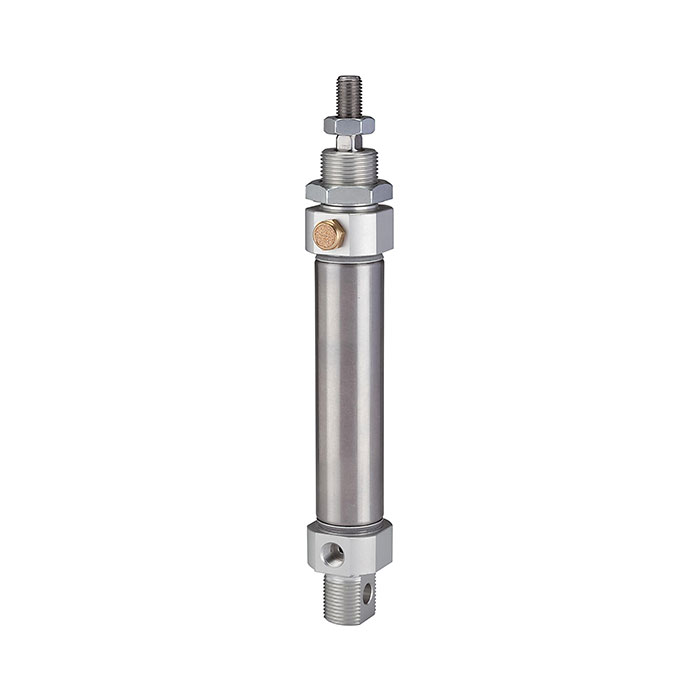

RIEGLER Round cylinder »MSI« single-acting, PistonØ 16, Stroke 10, M5x0.8
Type number: 11.EM.16010
EAN: 4047322316712
Round cylinder "MSI", single-acting, solenoid, piston Ø 16, stroke 10, connection M5x0.8, working pressure 2 - 10 bar, temp. -20 °C to 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | MSI series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Type CA |
| Piston Ø | 16 mm |
| Function | single-acting |
| Stroke | 10 mm |
| Piston rods AG | M6x1.0 |
| Piston rod Ø | 6 mm |
| Connection | M5x0.8 |
| Piston rod | Stainless steel 1.4301 |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
