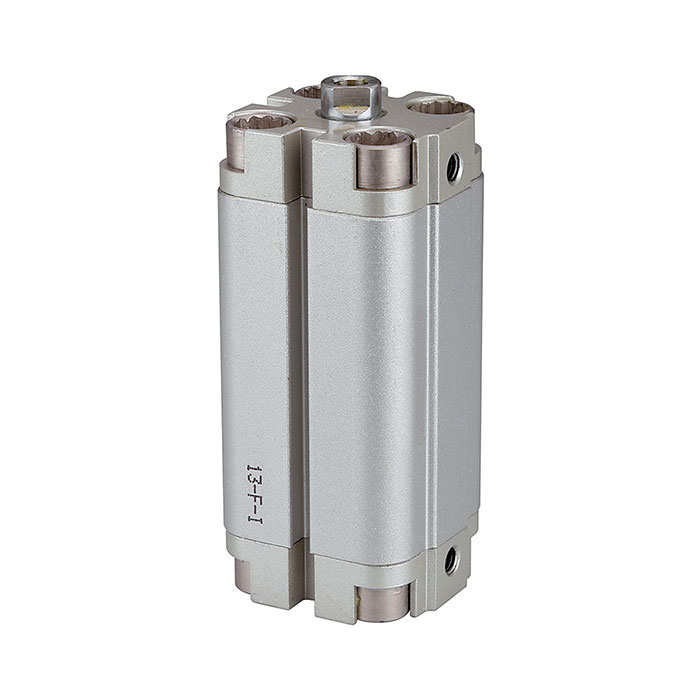

RIEGLER Compact cylinder, double-acting, Piston Ø 100, Stroke 100, G 1/4
Type number: 13.DM.100100
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Kompaktzylinder »ACP«, doppeltwirkend, Magnet, Kolben-Ø 100, Hub 100, Anschluss G 1/4, Arbeitsdr. 1-10 bar, Temp. -20 °C bis 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACP series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 100 mm |
| Function | double-acting |
| Stroke | 100 mm |
| Piston rod Ø | 25 mm |
| Piston rods IG | M12x1.75 |
| Connection | G 1/4 |
| Piston rod | Steel |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Thread piston rod | Internal thread on the piston rod |
