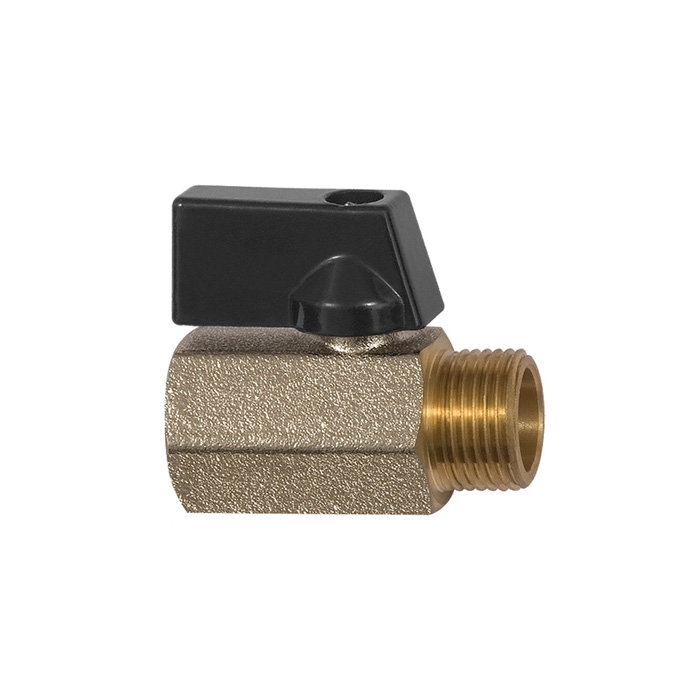

Mini ball valve "valve line", MS nickel-plated, rotary handle, G 3/8 IG/AG
Type number: ML 12
EAN: 4047322749688
Product no. :
132445Category :
2-Way Ball ValvesMini ball valve "valve line", MS nickel-plated, rotary handle, medium/ambient temp. -20 °C to 90 °C, G 3/8 female/male, DN 10, PN max. 10 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 90 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | EPDM |
| Rotary handle | Aluminum |
| Thread | G 3/8 IG/AG |
| DN | 10 |
| SW | 21 mm |
| B | 28 mm |
| L | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | EASY |
| Stand Material Compliance | 45098 |
