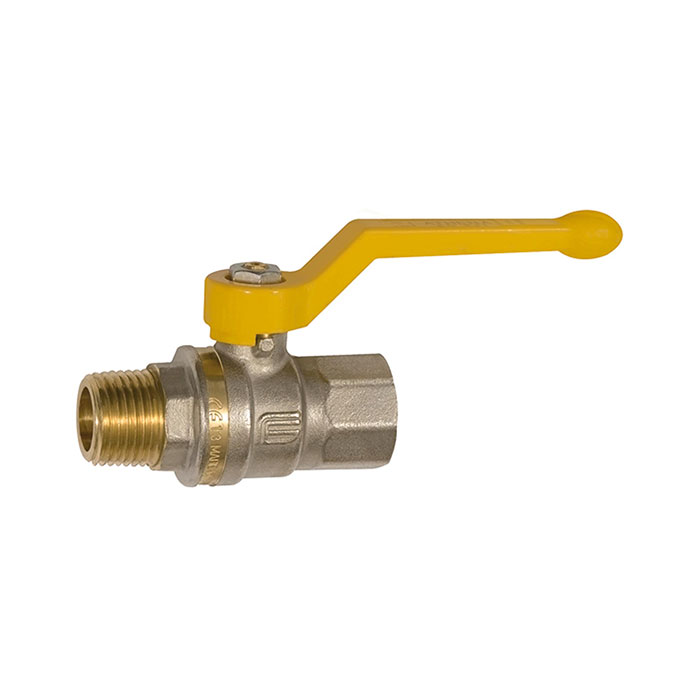

RIEGLER Ball valve EN 331 DVGW, nickel-plated brass, Hand lever, Rp/R 2
Type number: 350.1118
EAN: 4047322476775
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve DIN EN 331, DVGW, MS nickel-plated, hand lever, IG/AG, Rp/R 2, DN 50, operating temp. -15 °C to 60 °C, PN max. 5 bar (gas)
| Housing | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE / EPDM / HNBR |
| Hand lever | Aluminum |
| Operating pressure | max. 5 bar (pressure class MOP 5 according to DIN EN 331) |
| Operating temperature | -15 °C to 60 °C Gas |
| DVGW approval | DIN EN 331:2013-05 |
| Thread | Rp/R 2 |
| DN | 50 |
| Thread standard | Thread according to ISO 7-1 |
| A | 165 mm |
| B | 92 mm |
| L | 134.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | FLEX |
