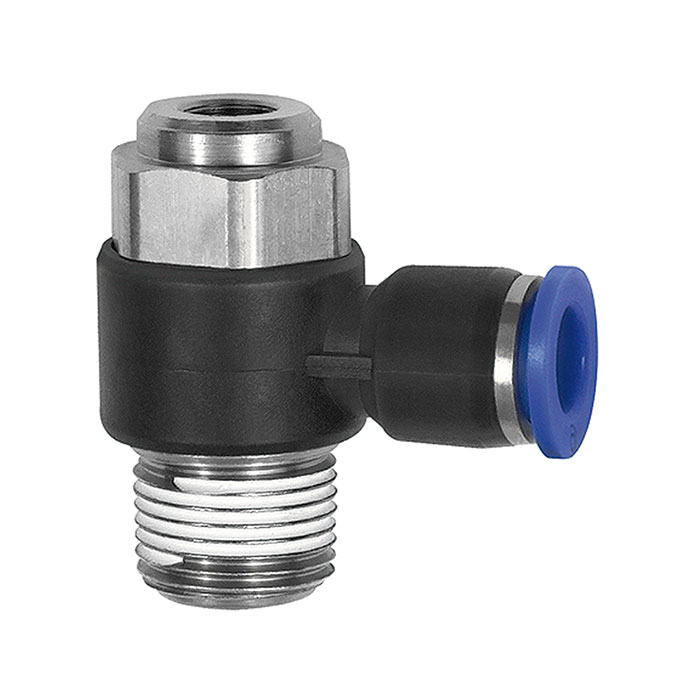

RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/2 o.
Type number: 297.012-8
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Throttle check valve "Blue Series", exhaust air throttle, R 1/2 a., for external Ø 8 mm, pmax short-time 15 bar, plastic/MS nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/2 |
| SW | 24 mm |
| for hose outer Ø | 8 mm |
| L1 | 32.8 mm |
| L2 | 51 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136017] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/2 o.](/web/image/product.template/207385/image_128/%5B136017%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-2%20o.?unique=ed014d9)
|
Type number: 297.012-10 |
13.14 € | |
![[136018] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/2 o.](/web/image/product.template/207386/image_128/%5B136018%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-2%20o.?unique=5dc42f3)
|
Type number: 297.012-12 |
13.14 € | |

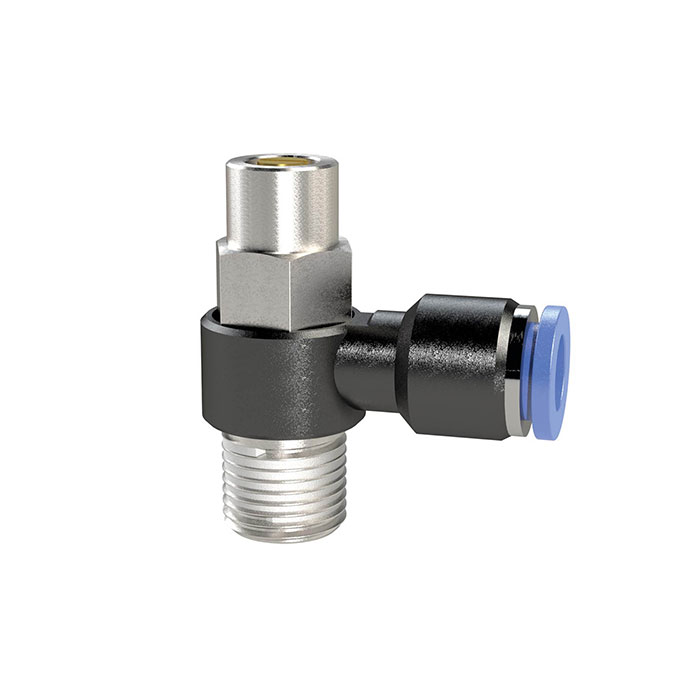

![[136009] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/4 o.](/web/image/product.template/207377/image_128/%5B136009%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-4%20o.?unique=8c1107d)
|
Type number: 297.014-6 |
6.28 € | |
![[136010] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/4 o.](/web/image/product.template/207378/image_128/%5B136010%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-4%20o.?unique=8942d74)
|
Type number: 297.014-8 |
6.28 € | |
![[136011] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/4 o.](/web/image/product.template/207379/image_128/%5B136011%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-4%20o.?unique=58dcbd4)
|
Type number: 297.014-10 |
6.28 € | |
![[136008] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/4 o.](/web/image/product.template/207376/image_128/%5B136008%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-4%20o.?unique=9e5ed0b)
|
Type number: 297.014-4 |
6.28 € | |
![[136005] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/8 o.](/web/image/product.template/207373/image_128/%5B136005%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-8%20o.?unique=cb811eb)
|
Type number: 297.018-4 |
5.47 € | |
![[136007] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/8 o.](/web/image/product.template/207375/image_128/%5B136007%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-8%20o.?unique=842851a)
|
Type number: 297.018-8 |
5.71 € | |
![[136006] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/8 o.](/web/image/product.template/207374/image_128/%5B136006%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%201-8%20o.?unique=9db3456)
|
Type number: 297.018-6 |
5.71 € | |
![[136015] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 3/8 o.](/web/image/product.template/207383/image_128/%5B136015%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%203-8%20o.?unique=12fde67)
|
Type number: 297.038-12 |
10.79 € | |
![[136014] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 3/8 o.](/web/image/product.template/207382/image_128/%5B136014%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%203-8%20o.?unique=d339e77)
|
Type number: 297.038-10 |
9.21 € | |
![[136012] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 3/8 o.](/web/image/product.template/207380/image_128/%5B136012%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%203-8%20o.?unique=d5060ad)
|
Type number: 297.038-6 |
8.89 € | |
![[136013] RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 3/8 o.](/web/image/product.template/207381/image_128/%5B136013%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Discharge%20throttle%2C%20R%203-8%20o.?unique=05d5a8e)
|
Type number: 297.038-8 |
8.89 € | |
