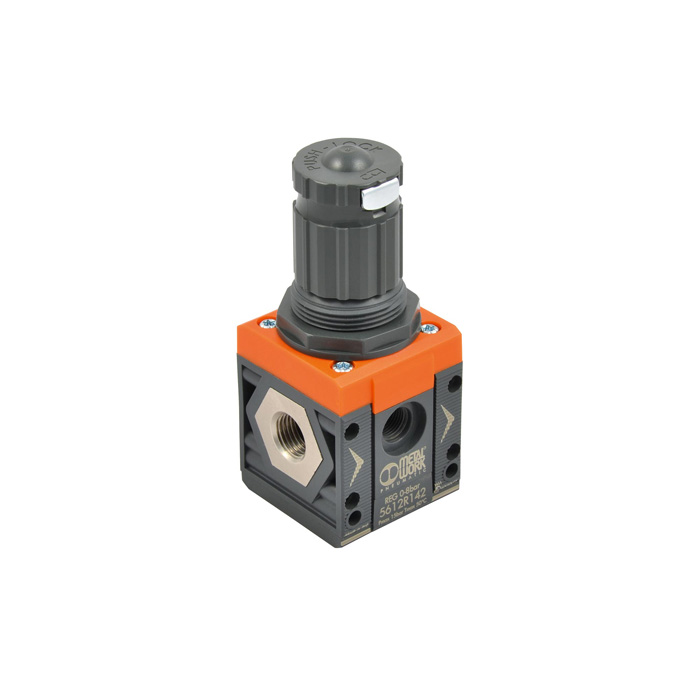

RIEGLER Pressure regulator "SYNTESI", BG2, G 3/8, 0...4 bar, o. Mano.
Type number: MVA.14.MS.110.F.BD.3
EAN: 4047322754569
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator "SYNTESI", BG 2, G 3/8, p1 = max. 13 bar, p2 = 0 ... 4 bar, T = -10 ... 50 °C, without pressure gauge
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Membrane | NBR 60 Shore (hardness) with polyester fabric insert |
| Control range min. | 0 bar |
| Control range max. | 4 bar |
| BG | 2 |
| Input connection | G 3/8 |
| Output connection | |
| A | 60.5 mm |
| B | 139 mm |
| D | 70.5 mm |
| Flow rate measurement 1 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Spring cover | Technopolymer |
| Flow_1 | 3000 Nl/min |
| Flow_2 | 5300 Nl/min |
