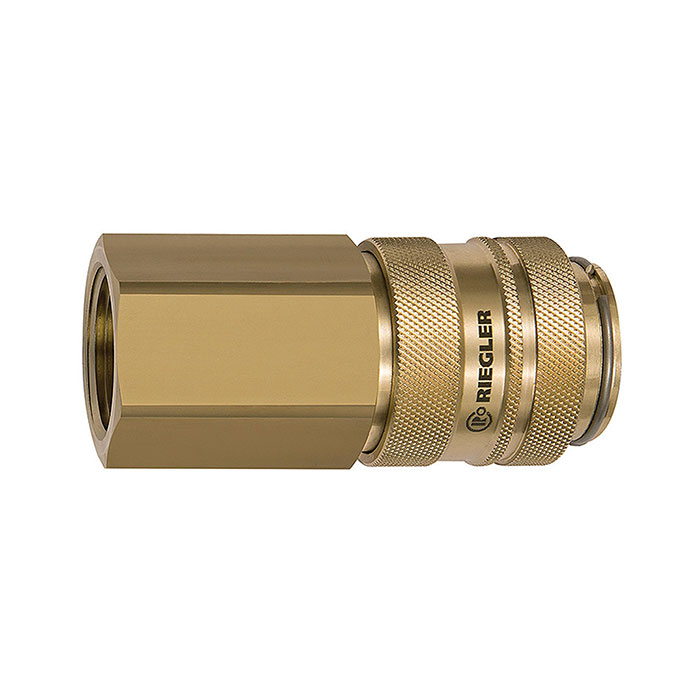

RIEGLER Quick-connect coupling I.D. 19, Bright brass, G 1 1/4 IT
Type number: 419.06
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
141566EAN :
4047322568388Weight :
0.84 kgQuick-connect coupling I.D. 19, Bright brass, G 1 1/4 IT, Operating pressure 0 - 35 bar, Med. / ambient temp. -20 °C to 100 °C
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 8700 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Brass bright |
| Threaded piece | Brass bright |
| Valve | Brass bright |
| Operating pressure | 0 - 35 bar |
| SW | 50 mm |
| NW | 19 |
| Length | 102 mm |
| Connection | G 1 1/4 FEMALE THREAD |
| Class name | PLUS |
